Features
960 – 1215 MHz
Low Loss
High Isolation
Tight Amplitude Balance
90 deg Quadrature
Surface Mountable
CTE Matched
ARNS Band
Tape and Reel Option
Specifications

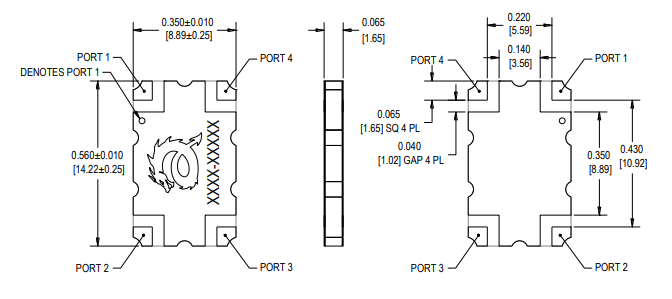

Size: .560 x .350 inches
Frequency: 960-1215 MHz
Power: 175 W
Insertion Loss: .12 dB
Amplitude Balance: ± .2
Isolation: 26 dB
VSWR: 1.15
Phase Balance: ± 2
