1700 – 6000 MHz
Broadband
Low Loss
High Isolation
90 deg Quadrature
Surface Mountable
CTE Matched
Tape and Reel Option
Evaluation board 722-0006-02-E01
Specifications

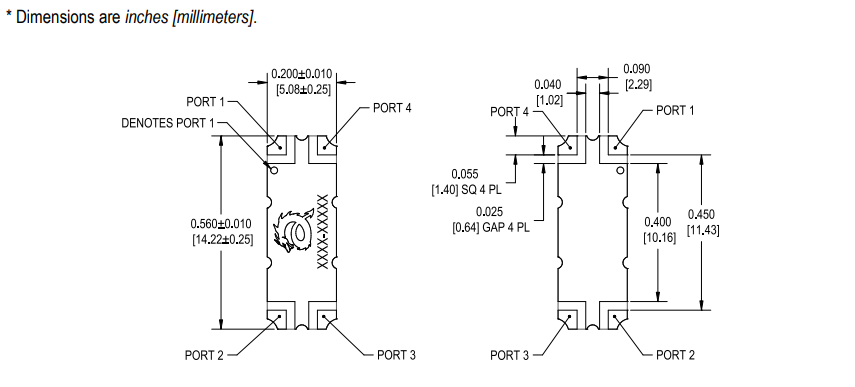

Size: .560 x .200 inches
Frequency: 1700-6000 MHz
Power: 85 W
Insertion Loss: .17 dB
Amplitude Balance: ± 1
Isolation: 18 dB
VSWR: 1.25
Phase Balance: ± 2
