產品詳情介紹

型號	頻率(GHz)	功率(W)	尺寸	非平衡阻抗（Ω）	平衡阻抗（Ω）	回損（dB）	插損（dB）	振幅平衡（dB）	相位平衡（dB）
B0205F50200AHF	0.2 - 0.5	2	0.16 x 0.08	50	200	13.9	1.6	0.4	180 +/- 3.1
BD0205F5050AHF	0.2 - 0.5	2	0.16 x 0.08	50	50	11	1.1	0.6	180 +/- 3
B0225J7575AHF	0.2 - 2.5	0.5	0.08 x 0.05	75	75	14	1.1	3.2	180 +/- 1.3
B0310J50100AHF	0.3 - 1.0	2	0.08 x 0.05	50	100	8.1	1	2.8	180 +/- 36
B0322J5050AHF	0.3 - 2.2	2	0.08 x 0.05	50	50	12.2	1.6	1.3	180 +/- 21
B0430J50100AHF	0.4 - 3.0	1	0.08 x 0.05	50	100	8.4	4	1.4	180 +/- 7
X4B10L1-5050G	0.6 - 2.5	1	0.06 x 0.03	50	50	20	1	1.5	180 +/- 15
X4BD10L1-50100G	0.6 - 2.5	1	0.06 x 0.03	50	100	10	1.8	1.4	180 +/- 4
X4BD10L1-50200G	0.6 - 2.5	1	0.06 x 0.03	50	200	10	1.9	1.9	180 +/- 9
XT0010E15012S	0.06-0.9	80	0.56 x 0.20	50	50	15	0.4	N/A	N/A
T0727J5012AHF	0.7 - 2.7	1	0.08 x 0.05	50	12.5	15	0.9	N/A	N/A
3A412	0.8 - 1.0	250	1.00 x 0.75	50	12.5	15	0.48	0.4	180 +/- 5
3A412S	0.8 - 1.0	250	1.00 x 0.75	50	12.5	15	0.48	0.4	180 +/- 5
BD0810J50100AHF	0.8 - 1.0	2	0.08 x 0.05	50	100	13	0.95	0.4	180 +/- 2
BD0810J50150AHF	0.8 - 1.0	2	0.08 x 0.05	50	150	13.3	1.1	0.6	180 +/- 6
BD0810J50200AHF	0.8 - 1.0	2	0.08 x 0.05	50	200	14.5	1	1.1	180 +/- 8
BD0810N50100AHF	0.8 - 1.0	0.75	0.04 x 0.04	50	100	18	1.2	1.4	180 +/- 9
BD0826J50200AHF	0.8 - 2.6	2	0.08 x 0.05	50	200	8.5	1.5	1.3	180 +/- 7
BD0922J75100AHF	0.9 - 2.2	2	0.08 x 0.05	75	100	9.1	1.64	0.8	180 +/- 2.66
3A325	0.47 - 0.86	275	0.87 x 0.75	50	25	10	0.35	0.4	180 +/- 5
B0110E50200AHF	0.085 - 1.300	0.5	0.08 x 0.05	50	200	11	1.5	0.8	180 +/-4
B0922J7575A50HF	0.95 - 2.15	2	0.08 x 0.05	75	75	12	1.1	1.4	180 +/- 3
B0922J7575AHF	0.95 - 2.15	2	0.08 x 0.05	75	75	7	1.2	1.4	180 +/- 3
B0922N7575AHF	0.95 - 2.15	0.75	0.04 x 0.04	75	75	13.2	0.76	2.1	180 +/- 18.39
B0809J50ATI	0.850 - 0.915	2	0.08 x 0.05	50	matched	15.3	0.6	N/A	N/A
BD1222J50200AHF	1.2 - 2.2	2	0.08 x 0.05	50	200	14	0.6	0.9	180 +/- 6
X4BD20L1-50200G	1.2 - 2.7	1	0.06 x 0.03	50	200	14	0.95	1.5	180 +/- 7
X4BD20L1-50100G	1.2 - 2.7	1	0.06 x 0.03	50	100	14	0.7	2	180 +/- 5
X4B20L1-5050G	1.2 - 2.7	1	0.06 x 0.03	50	50	20	0.8	0.9	180 +/- 7
BD1416N50100AHF	1.4 - 1.6	0.75	0.04 x 0.04	50	100	14	0.9	1.2	180 +/- 9
BD1631J50100AHF	1.6 - 3.1	2	0.08 x 0.05	50	100	10	1	1	180 +/- 5
BD1722J50100AHF	1.7 - 2.2	2	0.08 x 0.05	50	100	12	1.2	1.2	180 +/- 6
BD1722J50200AHF	1.7 - 2.2	2	0.08 x 0.05	50	200	15	0.7	0.9	180 +/- 8
BD1722N5050AHF	1.7 - 2.2	0.75	0.04 x 0.04	50	50	13	1.1	0.8	180 +/- 7
3W525S	1.8 - 2.5	150	0.65 x 0.48	50	25	15	0.38	0.4	180 +/- 5
BD2040J50100AHF	2.0 - 4.0	2	0.08 x 0.05	50	100	14.2	1.1	1.48	180 +/- 15
BD2130J5050AHF	2.1 - 3.0	2	0.08 x 0.05	50	50	10	1.2	1	180 +/- 5
BD2239N5050AHF	2.2 - 3.9	1	0.04 x 0.04	50	50	8	1.6	1.4	180 +/- 8
BD2326L50200AHF	2.3 - 2.6	2	0.06 x 0.03	50	200	12	1.1	0.8	180 +/- 9
BD2326L50150AHF	2.3 - 2.6	2	0.06 x 0.03	50	150	12	1.1	0.5	180 +/- 4
BD2327N50100AHF	2.3 - 2.7	1	0.04 x 0.04	50	100	17	0.8	1	180 +/- 7
X4B40L1-5050G	2.3 - 3.5	1	0.06 x 0.03	50	50	18	0.55	0.8	180 +/- 6

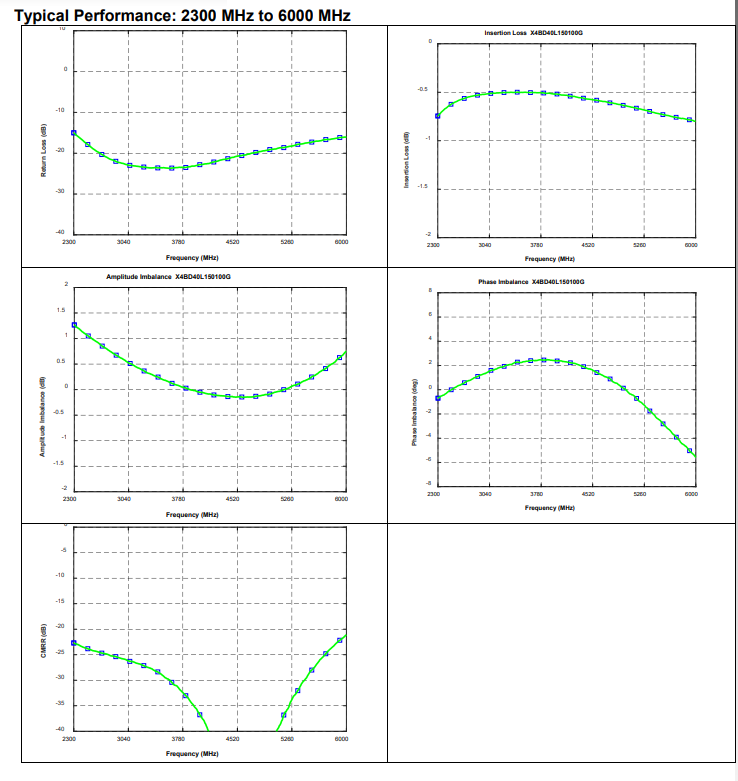

X4BD40L1-50100G	2.3 - 6.0	1	0.06 x 0.03	50	100	13.5	1	1.5	180 +/- 3
X4BD40L1-50200G	2.3 - 6.0	1	0.06 x 0.03	50	200	12	0.9	1.15	180 +/- 8
X4BD40L1-5050G	2.3 - 6.0	1	0.06 x 0.03	50	50	8.5	1.1	0.96	180 +/- 3
BD2425J50200AHF	2.4 - 2.5	2	0.08 x 0.05	50	200	9.5	0.8	0.5	180 +/- 6
BD2425N100ATI	2.4 - 2.5	1	0.04 x 0.04	50	Matched	17.3	0.8	N/A	N/A
BD2425N50100AHF	2.4 - 2.5	1	0.04 x 0.04	50	100	18	0.7	0.6	180 +/- 3
BD2425N50200AHF	2.4 - 2.5	1	0.04 x 0.04	50	200	21	0.7	1	180 +/- 6
BD2425N5050AHF	2.4 - 2.5	0.75	0.04 x 0.04	50	50	15	0.9	0.9	180 +/- 7
BD2425N5075AHF	2.4 - 2.5	1	0.04 x 0.04	50	75	14	0.9	0.9	180 +/- 3
BD2425N50ATI	2.4 - 2.5	1	0.04 x 0.04	50	Matched	13	0.6	N/A	N/A
BD2425NCSR	2.4 - 2.5	1	0.04 x 0.04	50	Matched	10	1	0.5	180 +/- 4
BD2425NNRF	2.4 - 2.5	1	0.04 x 0.04	50	Matched	10.2	1.25	N/A	N/A
BD2425P50100AHF	2.4 - 2.5	1	0.04 x 0.04	50	100	19	0.9	1.5	180 +/- 9
BD2425P5075AHF	2.4 - 2.5	1	0.04 x 0.04	50	75	11	1.15	1.56	180 +/- 6
BD2425J50100AHF	2.4 - 2.5	2	0.08 x 0.05	50	100	14	0.75	0.5	180 +/- 5
BD2635L5050AHF	2.6-3.5	2	0.06 x 0.03	50	50	18	0.6	0.7	180 +/- 4
BD2635L50100AHF	2.6-5.0	2	0.06 x 0.03	50	100		0.6	0.5	180 +/- 3
BD3150L50100AHF	3.1 - 5.0	2	0.06 x 0.03	50	100	9.5	1.1	0.9	180 +/- 9
BD3150N50100AHF	3.1 - 5.0	1	0.04 x 0.04	50	100	16	0.7	1.3	180 +/- 7
BD3238N5050AHF	3.2 - 3.8	1	0.04 x 0.04	50	50	7	1	1.5	180 +/- 6
BD3438J50200AHF	3.4 - 3.8	2	0.08 x 0.05	50	200	11	1	0.6	180 +/- 10
BD4859N50100AHF	4.8 - 5.9	1	0.04 x 0.04	50	100	15	0.6	1.5	180 +/- 8
BD4859N50150AHF	4.8 - 5.9	1	0.04 x 0.04	50	150	12	0.6	1.4	180 +/- 10
BD4859N5050AHF	4.8 - 5.9	1	0.04 x 0.04	50	50	13	0.7	1.2	180 +/- 7
BD60120N50100AHF	5.9 - 11.7	1	0.04 x 0.04	50	100	14	0.9	1.6	180 +/- 13
BD120170N50100AHF	12.7 - 15.4	1	0.04 x 0.04	50	100	13.9	0.53	1.2	180 +/- 20
BD170240N50100AHF	17.7 - 23.6	1	0.04 x 0.04	50	100	16	1	1	180 +/- 20

射频微波_欧美一区二区三区日韩_微波元器件_欧美一区二区三区免费看_芯片_欧美一区二区三区免费_电源模块_Raychem_立维创展

品牌：Anaren
