XP power QSB系列75-350W DCDC電源模塊
發布時間：2024-04-11 09:01:27 瀏覽：910

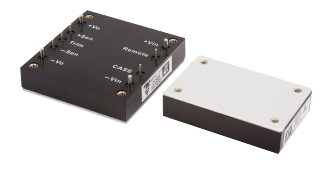

XP
Power的QSB系列DC/DC電源模塊，輸出功率范圍在75~350W之間，是隔離式、高效且穩定的電源解決方案。這些模塊采用了先進的電路設計和技術，以提供出色的性能、高效率和可靠性。
該系列電源模塊具有多種規格和配置，包括不同的輸入和輸出電壓范圍，以滿足各種應用的需求。其工作溫度范圍覆蓋-40℃至+100℃，采用了高功率密度設計，能夠在有限的空間內提供更高的功率輸出。此外，電源模塊支持底板冷卻，能夠保持良好的散熱性能，并且可通過遠程開/關和遠程感應進行控制，實現更加智能化的管理。
產品型號：
| Models and Ratings QSB75/100 XP |
| nput Woltage | Otnut Vltag | Output Current | Input Current | Ehiclend | Model Number |
| No Load | Full Load |
9-36VDC
(24V nominal) | 3.3V | 12.00 A | 50 mA | 2.04 A | 81.0% | SB7524S3V3 |
| 5.0V | 12.00 A | 50 mA | 2.98 A | 84.0% | QSB7524S05 |
| 12.0V | 6.25A | 50 mA | 3.64 A | 86.0% | QSB7524S12 |
| 15.0V | 5.00A | 50 mA | 3.64 A | 86.0% | QSB7524S15 |
| 24.0V | 3.12 A | 50 mA | 3.63 A | 86.0% | QSB7524S24 |
18-75VDC
(48V nominal) | 3.3V | 12.00 A | 30 mA | 1.10 A | 82.0% | QSB7548S3V3 |
| 5.0V | 12.00 A | 30 mA | 1.47 A | 85.0% | QSB7548S05 |
| 12.0V | 6.25 A | 30 mA | 1.82 A | 86.0% | OSB7548S12 |
| 15.0V | 5.00 A | 30 mA | 1.80 A | 870% | OSB7548S15 |
| 24.0V | 3.12 A | 30 mA | 1.80 A | 870% | OSB7548S24 |
9-36 VDC
(24V nominal) | 3.3V | 30.00A | 120 mA | 4.80 A | 86.0% | OSB10024S3V3 |
| 5.0V | 20.00 A | 120 mA | 4.82 A | 86.5% | OSB10024S05 |
| 12.0V | 8.30 A | 80 mA | 4.80 A | 86.5% | QSB10024S12 |
| 15.0V | 6.70 A | 80 mA | 4.84 A | 86.5% | QSB10024S15 |
| 24.0V | 4.17 A | 80 mA | 4.79 A | 870% | OSB10024S24 |
18-75VDC
(48V nominal) | 3.3V | 30.00A | 60 mA | 2.37 A | 88.0% | QSB10048S3V3 |
| 5.0V | 20.00 A | 60 mA | 2.37 A | 88.0% | OSB10048S05 |
| 12.0V | 8.30 A | 30 mA | 2.36A | 88.0% | OSB10048S12 |
| 15.0V | 6.70 A | 30 mA | 2.38 A | 88.0% | OSB10048S15 |
| 24.0V | 4.17 A | 30 mA | 2.37 A | 88.0% | QSB10048S24 |
| Models &Ratings | QSB150-350 |
| nput Voltage | Output Woltage | Output Current | Input Curent* | Eclency | Model Number |
| No Load | Ful Load |
9-36VDC
(24V nominal | 3.3V | 30.00 A | 200 mA | 4.75 A | 870% | OSB15024S3V3 |
| 5.0V | 30.00A | 200 mA | 719 A | 870% | QSB15024505 |
| 12.0V | 12.50 A | 100 mA | 710 A | 88.0% | OSB15024S12 |
| 15.0V | 10.00 A | 100 mA | 7.19 A | 870% | OSB15024S15 |
| 24.0V | 6.50 A | 100 mA | 734 A | 88.0% | OSB15024S24 |
18-75VDC
48V nominal | 3.3V | 30.00A | 100 mA | 2.34 A | 88.0% | OSB15048S3V3 |
| 5.0V | 30.00 A | 100 mA | 3.47 A | 90.0% | OSB15048S05 |
| 12.0V | 12.50 A | 50 mA | 3.44 A | 91.0% | OSB15048S12 |
| 15.0V | 10.00 A | 50 mA | 3.47 A | 90.0% | OSB15048S15 |
| 24.0V | 6.50A | 50 mA | 3.61 A | 90.0% | OSB15048S24 |
10-36VDG
24V nominal | 3.3V | S?.00 A | 150 mA | Z90 A | 870% | OSB20024S3V3 |
| 5.0V | 40.00 A | 150 mA | 9.58 A | 870% | QSB20024S05 |
| 12.0V | 16.70 A | 100 mA | 9.71 A | 86.0% | OSB20024S12 |
| 15.0V | 13.30 A | 100 mA | 9.67 A | 86.0% | OSB20024S15 |
| 24.0V | 8.30 A | 100 mA | 9.54A | 870% | OSR20024S2 |
| 48.0V | 4.20 A | 60 mA | 9.77 A | 86.0% | OSB20024S48 |
18-75VDC
148V nominal | 3.3V | 40.00 A | 80 mA | 3.13 A | 88.0% | OSB20048S3V3 |
| 5.0V | 40.00 A | 80 mA | 4.69 A | 89.0% | OSB20048S05 |
| 12.0V | 16.70 A | 60 mA | 4.74 A | 88.0% | QSB20048S12 |
| 15.0V | 13.30 A | 60 mA | 4.72 A | 88.0% | OSB20048S15 |
| 24.0V | 8.30 A | 60 mA | 772 A | 88.0% | OSB20048S24 |
| 48.0V | 4.20 A | 50 mA | 4.83 A | 870% | OSB20048S48 |
18-36 VDC
24V nominal | 3.3V | 70.0 A | 130 mA | 10.94 A | 88.0 % | OSB35024S3V3 |
| 5.0V | 70.0 A | 250 mA | 16.29 A | 89.5 % | OSB35024S05 |
| 12.0V | 29.2 A | 220 mA | 15.96 A | 91.5% | OSB35024S12 |
| 24.0V | 14.6 A | 40 mA | 16.22 A | 90.0% | OSB35024S24 |
| 28.0V | 12.5 A | 50 mA | 16.03 A | 91.0% | OSB35024S28 |
| 48.0V | Z3 A | 60 mA | 16.22 A | 90.0% | OSB35024S48 |
36-75VDC
48 V nominal | 3.3V | 70.0 A | 80 mA | 5.41 A | 89.0% | OSB35048S3V3 |
| 5.0V | 70.0 A | 120 mA | 8.01 A | 91.0% | OSB35048S05 |
| 12.0V | 29.2 A | 100 mA | Z89 A | 92.5% | OSB35048S12 |
| 24.0V | 14.6 A | 40 mA | 798 A | 91.5% | OSB35048S24 |
| 28.0V | 12.5 A | 30 mA | 788 A | 92.5% | OSB35048S28 |
| 48.0V | Z3 A | 60 mA | 793 A | 92.0% | OSB35048S48 |
