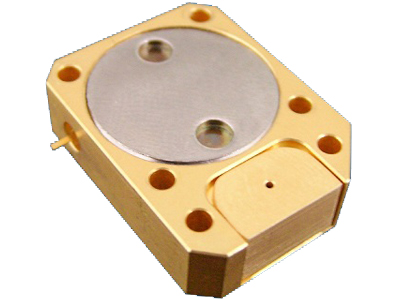

?RF-Labs帶狀線隔離器和循環器
發布時間：2024-02-04 17:05:21 瀏覽：782
RF-Labs帶狀線隔離器和循環器是30多年以來相似器件設計與檢測工作經驗的結果，以及根據為陸地和海洋艦隊使用的AESA領域提供了50000多個鐵氧體磁芯結。多年來，RF-Labs帶狀線隔離器和循環器需求量有所增長，并且越來越高的運行頻率、頻率和對低成本集成化極其嚴格。
Narrow Band Drop-In Isolators
Frequency [GHz] | Isolation [dB min] | INS Loss [dB max] | VSWR max | Operating Temperature [oC] |
0.420 – 0.450 | 20 | 0.50 | 1.25:1 | 0 to +50 |
0.980 – 1.080 | 21 | 0.50 | 1.20:1 | -25 to +85 |
1.030 – 1.090 | 20 | 0.50 | 1.25:1 | -25 to +85 |
1.080 – 1.195 | 20 | 0.50 | 1.25:1 | -25 to +85 |
1.200 – 1.400 | 18 | 0.60 | 1.30:1 | -25 to +85 |
1.435 – 1.535 | 18 | 0.50 | 1.20:1 | -25 to +85 |
1.525 – 1.559 | 21 | 0.30 | 1.20:1 | -25 to +85 |
1.960 – 2.170 | 17 | 0.60 | 1.35:1 | -25 to +85 |
2.100 – 2.300 | 18 | 0.50 | 1.30:1 | -25 to +85 |
2.200 – 2.300 | 20 | 0.50 | 1.25:1 | -25 to +85 |
2.500 – 2.700 | 20 | 0.50 | 1.25:1 | -25 to +85 |
2.700 – 2.900 | 20 | 0.60 | 1.25:1 | -25 to +85 |
2.800 – 3.300 | 15 | 0.75 | 1.40:1 | -25 to +85 |
3.000 – 3.600 | 18 | 0.50 | 1.30:1 | -25 to +85 |
3.400 – 3.700 | 20 | 0.50 | 1.20:1 | -25 to +85 |
3.700 – 4.200 | 20 | 0.40 | 1.25:1 | -25 to +85 |
3.700 – 4.200 | 18 | 0.60 | 1.30:1 | -25 to +85 |
4.200 – 4.400 | 20 | 0.50 | 1.25:1 | -25 to +85 |
4.200 – 4.400 | 20 | 0.40 | 1.25:1 | -25 to +85 |
4.500 – 4.700 | 19 | 0.50 | 1.25:1 | -25 to +85 |
4.750 – 5.250 | 21 | 0.50 | 1.20:1 | -25 to +85 |
5.150 – 5.650 | 18 | 0.40 | 1.30:1 | -25 to +85 |
5.400 – 5.900 | 20 | 0.50 | 1.25:1 | -25 to +85 |
5.845 – 6.425 | 21 | 0.50 | 1.20:1 | -25 to +85 |
5.900 – 6.400 | 19 | 0.50 | 1.25:1 | -25 to +85 |
6.900 – 7.600 | 18 | 0.60 | 1.30:1 | -25 to +85 |
7.000 – 7.500 | 19 | 0.50 | 1.25:1 | -25 to +85 |
7.000 – 7.700 | 21 | 0.50 | 1.20:1 | -25 to +85 |
7.100 – 7.700 | 20 | 0.50 | 1.25:1 | -25 to +85 |
7.125 – 7.875 | 18 | 0.60 | 1.30:1 | -25 to +85 |
7.500 – 8.400 | 17 | 0.60 | 1.35:1 | -25 to +85 |
7.800 – 8.600 | 19 | 0.50 | 1.25:1 | -25 to +85 |
8.000 – 8.500 | 16 | 0.60 | 1.40:1 | -25 to +85 |
8.600 – 9.600 | 20 | 0.50 | 1.20:1 | -25 to +85 |
9.000 – 10.500 | 19 | 0.50 | 1.25:1 | -25 to +85 |
9.200 – 9.900 | 19 | 0.50 | 1.25:1 | -25 to +85 |
9.500 – 10.500 | 20 | 0.50 | 1.25:1 | -25 to +85 |
9.700 – 11.200 | 19 | 0.50 | 1.25:1 | -25 to +85 |
10.400 – 11.300 | 21 | 0.50 | 1.20:1 | -25 to +85 |
10.700 – 11.950 | 20 | 0.50 | 1.25:1 | -25 to +85 |
11.500 – 12.950 | 19 | 0.50 | 1.25:1 | -25 to +85 |
12.100 – 12.800 | 19 | 0.50 | 1.25:1 | -25 to +85 |
12.500 – 14.100 | 20 | 0.50 | 1.25:1 | -25 to +85 |
12.750 – 14.500 | 20 | 0.70 | 1.25:1 | -25 to +85 |
12.750 – 14.500 | 21 | 0.50 | 1.20:1 | -25 to +85 |
17.300 – 18.100 | 18 | 0.60 | 1.30:1 | -25 to +85 |
19.550 – 20.350 | 17 | 0.60 | 1.30:1 | -25 to +85 |
Broad Band Drop-In Isolators
Frequency [GHz] | Isolation [dB min] | INS Loss [dB max] | VSWR max | Operating Temperature [oC] |
0.960 – 1.215 | 18 | 0.50 | 1.30:1 | -25 to +85 |
2.000 – 4.000 | 16 | 0.60 | 1.40:1 | -10 to +70 |
3.000 – 6.000 | 16 | 0.60 | 1.40:1 | -25 to +85 |
3.400 to 4.200 | 18 | 0.60 | 1.30:1 | -25 to +85 |
4.000 to 8.000 | 16 | 0.60 | 1.40:1 | -25 to +85 |
5.00o to 10.000 | 16 | 0.60 | 1.40:1 | -25 to +85 |
7.400 – 9.400 | 19 | 0.50 | 1.25:1 | -25 to +85 |
8.000 – 12.000 | 16 | 0.70 | 1.45:1 | -25 to +85 |
8.000 – 12.000 | 17 | 0.60 | 1.40:1 | -25 to +85 |
8.000 – 16.000 | 14 | 0.80 | 1.50:1 | -25 to +85 |
12.000 – 18.000 | 17 | 0.90 | 1.50:1 | -25 to +85 |
12.000 – 18.000 | 17 | 0.70 | 1.50:1 | -25 to +85 |
Narrow Band Drop-In Circulators
Frequency [GHz] | Isolation [dB min] | INS Loss [dB max]] | VSWR max | Operating Temperature [oC] |
0.420 – 0.450 | 20 | 0.50 | 1.30:1 | 0 to +50 |
0.980 – 1.080 | 21 | 0.50 | 1.20:1 | -25 to +85 |
1.030 – 1.090 | 20 | 0.50 | 1.25:1 | -25 to +85 |
1.200 – 1.400 | 17 | 0.60 | 1.35:1 | -25 to +85 |
1.435 – 1.535 | 18 | 0.50 | 1.20:1 | -25 to +85 |
2.200 – 2.300 | 20 | 0.50 | 1.25:1 | -25 to +85 |
2.500 – 2.700 | 18 | 0.50 | 1.30:1 | -25 to +85 |
2.700 – 2900 | 20 | 0.40 | 1.25:1 | -25 to +85 |
2.900 – 3.100 | 21 | 0.50 | 1.20:1 | -25 to +85 |
3.000 – 3.600 | 18 | 0.60 | 1.30:1 | -25 to +85 |
3.600 – 4.200 | 19 | 0.50 | 1.25:1 | -25 to +85 |
3.700 – 4.200 | 20 | 0.40 | 1.25:1 | -25 to +85 |
3.700 – 4.200 | 18 | 0.60 | 1.30:1 | -25 to +85 |
4.200 – 4.400 | 18 | 0.40 | 1.30:1 | -25 to +85 |
5.400 – 5.900 | 18 | 0.50 | 1.30:1 | -25 to +85 |
5.900 – 6.400 | 19 | 0.50 | 1.25:1 | -25 to +85 |
6.600 – 7.300 | 19 | 0.50 | 1.25:1 | -25 to +85 |
8.000 – 8.500 | 19 | 0.50 | 1.25:1 | -25 to +85 |
10.750 – 12.800 | 20 | 0.50 | 1.25:1 | -25 to +85 |
12.700 – 13.500 | 21 | 0.50 | 1.20:1 | -25 to +85 |
17.200 – 17.900 | 19 | 0.50 | 1.25:1 | -25 to +85 |
Broad Band Drop-In Circulators
Frequency [GHz] | Isolator [dB min] | INS Loss [dB max] | VSWR max | Operating Temperature [oC] |
0.960 – 1.215 | 19 | 0.50 | 1.30:1 | -25 to +85 |
2.000 – 4.000 | 16 | 0.60 | 1.40:1 | -10 to +70 |
3.000 – 6.000 | 16 | 0.60 | 1.40:1 | -25 to +85 |
4.000 – 8.000 | 16 | 0.60 | 1.40:1 | -25 to +85 |
5.000 – 10.000 | 15 | 0.60 | 1.45:1 | -20 to +70 |
8.000 – 12.000 | 16 | 0.60 | 1.40:1 | -25 to +85 |
8.000 – 16.000 | 14 | 0.80 | 1.50:1 | -25 to +85 |
12.000 – 18.000 | 15 | 0.70 | 1.50:1 | -25 to +85 |
Narrow Band MICPuck Isolators
Frequency [GHz] | Isolation [dB min] | INS Loss [dB max] | VSWR max | Operating Temperature [c] |
1.000 – 1.050 | 19 | 0.50 | 1.25:1 | -25 to +85 |
1.525 – 1.559 | 20 | 0.50 | 1.20:1 | -25 to +85 |
2.020 – 2.190 | 20 | 0.40 | 1.22:1 | -25 to +85 |
2.100 – 2.300 | 20 | 0.50 | 1.25:1 | -25 to +85 |
2.300 – 2.500 | 20 | 0.50 | 1.25:1 | -25 to +85 |
2.400 – 2.800 | 20 | 0.50 | 1.25:1 | -25 to +85 |
2.500 – 2.900 | 20 | 0.50 | 1.25:1 | -25 to +85 |
2.700 – 2.950 | 20 | 0.50 | 1.25:1 | -25 to +85 |
2.900 – 3.300 | 20 | 0.50 | 1.25:1 | -25 to +85 |
3.100 – 3.300 | 20 | 0.50 | 1.25:1 | -25 to +85 |
3.400 – 3.800 | 20 | 0.50 | 1.25:1 | -25 to +85 |
3.500 – 3.700 | 20 | 0.50 | 1.25:1 | -25 to +85 |
4.300 – 4.500 | 21 | 0.50 | 1.20:1 | -25 to +85 |
4.400 – 4.800 | 21 | 0.50 | 1.20:1 | -25 to +85 |
4.700 – 4.900 | 20 | 0.50 | 1.25:1 | -25 to +85 |
5.400 – 5.900 | 20 | 0.50 | 1.25:1 | -25 to +85 |
5.850 – 6.450 | 20 | 0.50 | 1.20:1 | -25 to +85 |
6.400 – 6.700 | 20 | 0.50 | 1.25:1 | -25 to +85 |
6.650 – 7.350 | 20 | 0.50 | 1.25:1 | -25 to +85 |
6.700 – 7.100 | 18 | 0.60 | 1.20:1 | -25 to +85 |
7.100 – 7.300 | 19 | 0.50 | 1.25:1 | -25 to +85 |
7.125 – 7.875 | 18 | 0.50 | 1.30:1 | -25 to +85 |
7.200 – 7.400 | 19 | 0.50 | 1.25:1 | -25 to +85 |
7.250 – 7.750 | 18 | 0.50 | 1.30:1 | -25 to +85 |
7.400 – 7.600 | 19 | 0.50 | 1.25:1 | -25 to +85 |
7.550 – 8.050 | 19 | 0.50 | 1.25:1 | -25 to +85 |
7.825 – 8.475 | 21 | 0.50 | 1.20:1 | -25 to +85 |
7.825 – 8.475 | 21 | 0.50 | 1.20:1 | -25 to +85 |
8.050 – 8.250 | 19 | 0.50 | 1.25:1 | -25 to +85 |
8.550 – 9.450 | 18 | 0.60 | 1.30:1 | -25 to +85 |
9.400 – 9.900 | 19 | 0.50 | 1.25:1 | -25 to +85 |
9.800 – 10.800 | 18 | 0.60 | 1.30:1 | -25 to +85 |
10.700 – 11.700 | 21 | 0.50 | 1.20:1 | -25 to +85 |
10.700 – 12.750 | 20 | 0.50 | 1.20:1 | -25 to +85 |
11.000 – 13.000 | 18 | 0.60 | 1.30:1 | -25 to +85 |
11.400 – 11.700 | 20 | 0.50 | 1.25:1 | -25 to +85 |
11.700 – 12.700 | 21 | 0.50 | 1.20:1 | -25 to +85 |
12.700 – 13.800 | 21 | 0.50 | 1.20:1 | -25 to +85 |
13.100 – 14.700 | 18 | 0.60 | 1.30:1 | -25 to +85 |
13.400 – 15.000 | 18 | 0.60 | 1.30:1 | -25 to +85 |
14.000 – 14.500 | 21 | 0.50 | 1.20:1 | -25 to +85 |
17.100 – 17.900 | 17 | 0.80 | 1.40:1 | -25 to +85 |
17.300 – 18.500 | 21 | 0.50 | 1.20:1 | -25 to +85 |
17.800 – 19.000 | 21 | 0.50 | 1.20:1 | -25 to +85 |
18.100 – 19.100 | 19 | 0.60 | 1.25:1 | -25 to +85 |
18.800 – 20.200 | 20 | 0.60 | 1.20:1 | -25 to +85 |
19.500 – 20.500 | 19 | 0.50 | 1.25:1 | -25 to +85 |
20.000 – 20.600 | 21 | 0.60 | 1.20:1 | -25 to +85 |
20.200 – 21.200 | 21 | 0.60 | 1.20:1 | -25 to +85 |
21.000 – 23.000 | 19 | 0.60 | 1.25:1 | -25 to +85 |
