PIN二極管Aeroflex

發布時間：2023-09-11 16:33:34 瀏覽：772

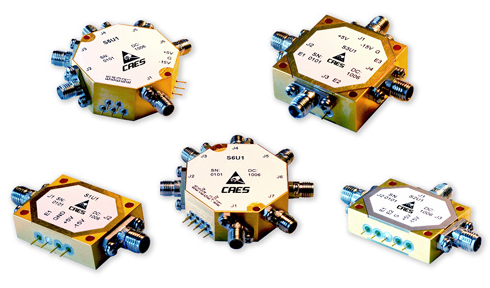

Aeroflex PIN二極管開關應用于從經濟高效率的窄帶到高性能寬帶的諸多標準化工作頻段。Aeroflex的開關使用了TTL適配控制器，可便捷地實現信息系統集成，并能夠在+5和-12V至-18V直流穩壓電源下工作。它們包括直流塊。Aeroflex支持并且提供定制開發配置，以滿足要求高隔離度、低插入損耗、快速開關速度與其它特殊需求的嚴格技術應用。

Aeroflex PIN二極管開關可用作吸收式或反射式SP1T、SP2T、SP3T、SP4T、SP5T和轉換開關，應用于10MHz至18GHz的諸多頻率段。Aeroflex的標準PIN二極管開關對于低插入損耗和VSWR、高隔離度和快速開關速度進行優化，并使用了TTL適配控制器。所有的標準化開關均具有氣密性密封和高可靠性搜索功能，應用于國防軍事和空間技術應用。

Aeroflex-API Tech公司旗下WEINSCHEL、INMET品牌，現在被API收購。Aeroflex-API Tech能夠滿足用戶對于射頻微波測試及微電子平臺的產品計劃、科技研發、生產生產以及運營維護等各個環節的多種測試需求。Aeroflex-API Tech產品應用領域包括航空航天，國防軍工，無線通訊，寬帶通訊平臺。目前，Aeroflex-API Tech產品系列衰減器、終端負載、限幅器產品一直是全球高可靠性應用市場的領導者。

深圳市立維創展科技是Aeroflex經銷商，主要提供Aeroflex原產品系列衰減器，終端負載，限幅器產品，產品原裝庫存，極具價格優勢，歡迎咨詢。

詳情了解Aeroflex-API Tech請點擊：http://www.bgbga.com/brand/10.html

零件號	頻率范圍 (GHz)	開關類型	插入損耗	駐波比（Max）	隔離度（dB Min）	開關速度（Max nsec）	最大射頻 (dBm)
S1H3R	0.01 – 1.0	Reflective	1.2	1.5	75	250	30
S1V2R	0.1 - 1.0	Reflective	1.2	1.5	75	250	30
S1U6R	0.5 - 18.0	Reflective	2.8	2	60	100	27
S1L1R	1.0 - 2.0	Reflective	0.8	1.5	80	100	30
S1S1R	2.0 - 4.0	Reflective	1	1.6	70	100	30
S1C1R	4.0 - 8.0	Reflective	1.7	1.6	70	100	30
S1X3R	8.0 - 18.0	Reflective	2.6	2	60	100	27
SWM-1100	0.5 - 18.0	Reflective	2.6	1.8	60	100	30
S2H3R	0.01 – 1.0	Reflective	1.2	1.5	75	250	30
S2V2R	0.1 - 1.0	Reflective	1.2	1.5	75	250	30
S2U6R	0.5 - 18.0	Reflective	3	2	60	100	27
S2L1R	1.0 - 2.0	Reflective	0.9	1.5	80	100	30
S2S1R	2.0 - 4.0	Reflective	1.1	1.6	70	100	30
S2C1R	4.0 - 8.0	Reflective	1.7	1.6	70	100	30
S2X3R	8.0 - 18.0	Reflective	2.8	2	60	100	27
SWM-1200	0.5 - 18.0	Reflective	2.8	2	60	100	30
S3H3R	0.01 – 1.0	Reflective	1.3	1.5	75	250	30
S3V2R	0.1 - 1.0	Reflective	1.3	1.5	75	250	30
S3U6R	0.5 - 18.0	Reflective	3.2	2	60	100	27
S3L1R	1.0 - 2.0	Reflective	1	1.5	80	100	30
S3S1R	2.0 - 4.0	Reflective	1.2	1.6	70	100	30
S3C1R	4.0 - 8.0	Reflective	1.8	1.6	70	100	27
S3X3R	8.0 - 18.0	Reflective	3	2	60	100	27
SWM-1300	0.5 - 18.0	Reflective	2.8	2	60	100	30
S4H3R	0.01 – 1.0	Reflective	1.4	1.5	75	250	30
S4V2R	0.1 - 1.0	Reflective	1.4	1.5	75	250	30
S4U6R	0.5 - 18.0	Reflective	3.4	2	60	100	27
S4L1R	1.0 - 2.0	Reflective	1.1	1.5	80	100	30
S4S1R	2.0 - 4.0	Reflective	1.3	1.6	70	100	30
S4C1R	4.0 - 8.0	Reflective	1.9	1.6	70	100	27
S4X3R	8.0 - 18.0	Reflective	3.2	2	60	100	27
SWM-1400	0.5 - 18.0	Reflective	2.8	2	60	100	30
S5H3R	0.01 – 1.0	Reflective	1.5	1.5	75	250	30
S5V2R	0.1 - 1.0	Reflective	1.5	1.5	75	250	30
S5U6R	0.5 - 18.0	Reflective	3.6	2	60	100	27
S5L1R	1.0 - 2.0	Reflective	1.2	1.5	80	100	30
S5S1R	2.0 - 4.0	Reflective	1.4	1.6	70	100	30
S5C1R	4.0 - 8.0	Reflective	2	1.6	70	100	27
S5X3R	8.0 - 18.0	Reflective	3.4	2	60	100	27
S6H3R	0.01 – 1.0	Reflective	1.6	1.5	75	250	30
S6V2R	0.1 - 1.0	Reflective	1.6	1.5	75	250	30
S6U6R	0.5 - 18.0	Reflective	3.8	2	60	100	27
S6L1R	1.0 - 2.0	Reflective	1.3	1.5	80	100	30
S6S1R	2.0 - 4.0	Reflective	1.5	1.6	70	100	27
S6C1R	4.0 - 8.0	Reflective	2.1	1.6	70	100	27
S6X3R	8.0 - 18.0	Reflective	3.6	2	60	100	27
S1H3	0.01 – 1.0	Absorptive	1.3	1.5	80	250	30
S1V2	0.1 - 1.0	Absorptive	1.3	1.5	80	250	30
S1U6	0.5 - 18.0	Absorptive	3	2	65	100	27
S1L1	1.0 - 2.0	Absorptive	0.9	1.5	85	100	30
S1S1	2.0 - 4.0	Absorptive	1.1	1.6	75	100	30
S1C1	4.0 - 8.0	Absorptive	1.8	1.6	75	100	30
S1X3	8.0 - 18.0	Absorptive	2.8	2	65	100	27
SWM-1100A	0.5 - 18.0	Absorptive	2.6	1.8	50	100	30
S2H3	0.01 – 1.0	Absorptive	1.3	1.5	80	250	30
S2V2	0.1 - 1.0	Absorptive	1.3	1.5	80	250	30
S2U6	0.5 - 18.0	Absorptive	3.2	2	65	100	27
S2L1	1.0 - 2.0	Absorptive	1	1.5	85	100	30
S2S1	2.0 - 4.0	Absorptive	1.2	1.6	75	100	30
S2C1	4.0 - 8.0	Absorptive	1.9	1.6	75	100	30
S2X3	8.0 - 18.0	Absorptive	3	2	65	100	27
SWM-1200A	0.5 - 18.0	Absorptive	3	2	65	100	30
S3H3	0.01 – 1.0	Absorptive	1.4	1.5	80	250	30
S3V2	0.1 - 1.0	Absorptive	1.4	1.5	80	250	30
S3U6	0.5 - 18.0	Absorptive	3.4	2	65	100	27
S3L1	1.0 - 2.0	Absorptive	1.1	1.5	85	100	30
S3S1	2.0 - 4.0	Absorptive	1.4	1.6	75	100	30
S3C1	4.0 - 8.0	Absorptive	2	1.6	75	100	27
S3X3	8.0 - 18.0	Absorptive	3.2	2	65	100	27
SWM-1300A	0.5 - 18.0	Absorptive	3	2	65	100	30
S4H3	0.01 – 1.0	Absorptive	1.5	1.5	80	250	30
S4V2	0.1 - 1.0	Absorptive	1.5	1.5	80	250	30
S4U6	0.5 - 18.0	Absorptive	3.6	2	65	100	27
S4L1	1.0 - 2.0	Absorptive	1.2	1.5	85	100	30
S4S1	2.0 - 4.0	Absorptive	1.4	1.6	75	100	30
S4C1	4.0 - 8.0	Absorptive	2.2	1.6	75	100	27
S4X3	8.0 - 18.0	Absorptive	3.4	2	65	100	27
SWM-1400A	0.5 - 18.0	Absorptive	3	2	65	100	30
S5H3	0.01 – 1.0	Absorptive	1.6	1.5	80	250	30
S5V2	0.1 - 1.0	Absorptive	1.6	1.5	80	250	30
S5U6	0.5 - 18.0	Absorptive	3.8	2	65	100	27
S5L1	1.0 - 2.0	Absorptive	1.3	1.5	85	100	30
S5S1	2.0 - 4.0	Absorptive	1.5	1.6	75	100	30
S5C1	4.0 - 8.0	Absorptive	2.3	1.6	75	100	27
S5X3	8.0 - 18.0	Absorptive	3.6	2	65	100	27
S6H3	0.01 – 1.0	Absorptive	1.7	1.5	80	250	30
S6V2	0.1 - 1.0	Absorptive	1.7	1.5	80	250	30
S6U6	0.5 - 18.0	Absorptive	4.1	2	65	100	27
S6L1	1.0 - 2.0	Absorptive	1.4	1.5	85	100	30
S6S1	2.0 - 4.0	Absorptive	1.6	1.6	75	100	27
S6C1	4.0 - 8.0	Absorptive	2.4	1.6	75	100	27
S6X3	8.0 - 18.0	Absorptive	3.9	2	65	100	27
XFH1	0.01 – 1.0	Transfer	0.8	1.5	80	250	30
XFU6	0.1 - 1.0	Transfer	3.3	2	65	100	27
XFL1	0.5 - 18.0	Transfer	1	1.5	80	100	30
XFS1	1.0 - 2.0	Transfer	1.2	1.6	75	100	30
XFC1	2.0 - 4.0	Transfer	1.9	1.6	75	100	30
XFX3	4.0 - 8.0	Transfer	3	2	65	100	27
