?ATM Microwave中高功率可變衰減器
發布時間：2022-12-07 16:40:11 瀏覽：742
可變衰減器是種新技術可調式電子元器件。選用厚薄膜生產工藝設計的可變衰減器被普遍應用在通信設備、測試設備和共用電視天線系統用作調整信號頻率的功能。

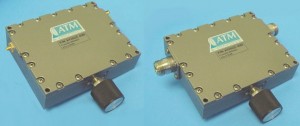

ATM Microwave制造多種具有SMA和N型連接器的中高功率“CVA”衰減器。ATMMicrowave中高功率可變衰減器提供15W、30W和50W規格型號。
ATM Microwave是美國老牌子的微波元件生產商。主要產品為同軸和波導器件產品，功能包含適配器、衰減器、耦合器、移相器、終端負載，及其Ka波段通訊衛星器件系列，產品滿足空間應用標準和驗證.
深圳市立維創展科技有限公司，持續ATM microwave代理渠道，為中國客戶提供技術支持。
詳情了解ATM Microwave請點擊：http://www.bgbga.com/brand/53.html
MEDIUM POWER (15W) CONTINUOUSLY VARIABLE ATTENUATORS |
Connector Type | Freq. (GHz) | Atten. Range (dB) | Insertion Loss
dB max. | VSWR
(Typ.) | Flatness
+/- (dB) | Model No. |
SMA | 0.85 - 2.5 | 30 | 0.5 | 1.5 * | N/A | AV262D-30 |
0.85 - 4.0 | 30 | 0.5 | 1.5 * | N/A | AV262E-30 |
TYPE-N | 0.85 - 2.5 | 30 | 0.5 | 1.5 * | N/A | AV262D-30N/F |
0.85 - 4.0 | 30 | 0.5 | 1.5 * | N/A | AV262E-30N/F |
HIGH POWER (30W) CONTINUOUSLY VARIABLE ATTENUATORS |
Connector
Type | Freq. (GHz) | Atten
Range (dB) | Insertion Loss
(dB max.) | VSWR
max | Flatness
+/- (dB) | Model No. |
SMA | 0.45 - 1.0 | 6 | 0.5 | 1.7 | N/A | AH30V081-6 |
0.5 - 1.0 | 6 | 0.5 | 1.5 | N/A | AH30V082-6 |
0.8 - 1.6 | 10 | 0.5 | 1.5 | N/A | AH30V083L-10 |
0.9 - 1.75 | 10 | 0.5 | 1.5 | N/A | AH30V083L1-10 |
1.0 - 2.0 | 10 | 0.5 | 1.5 | N/A | AH30V083-10 |
2.0 - 4.2 | 10 | 0.5 | 1.5 | N/A | AH30V084-10 |
4.0 - 8.0 | 10 | 0.5 | 1.5 | N/A | AH30V085-10 |
7.9 - 12.7 | 10 | 0.5 | 1.5 | N/A | AH30V086-10 |
11.7 - 18.0 | 10 | 0.5 | 1.5 | N/A | AH30V087-10 |
11.7 - 18.0 | 15 | 0.5 | 1.5 | N/A | AH30V087-15 |
TYPE-N | 0.45 - 1.0 | 6 | 0.5 | 1.7 | N/A | AH30V081-6N/F |
0.5 - 1.0 | 6 | 0.5 | 1.5 | N/A | AH30V082-6N/F |
0.8 - 1.6 | 10 | 0.5 | 1.5 | N/A | AH30V083L-10N/F |
0.9 - 1.75 | 10 | 0.5 | 1.5 | N/A | AH30V083L1-10N/F |
1.0 - 2.0 | 10 | 0.5 | 1.5 | N/A | AH30V083-10N/F |
2.0 - 4.2 | 10 | 0.5 | 1.5 | N/A | AH30V084-10N/F |
4.0 - 8.0 | 10 | 0.5 | 1.5 | N/A | AH30V085-10N/F |
7.9 - 12.7 | 10 | 0.5 | 1.5 | N/A | AH30V086-10N/F |
11.7 - 18.0 | 10 | 0.5 | 1.5 | N/A | AH30V087-10N/F |
11.7 - 18.0 | 15 | 0.5 | 1.5 | N/A | AH30V087-15N/F |
VERY HIGH POWER (50W) CONTINUOUSLY VARIABLE ATTENUATORS |
Connector Type | Freq (GHz) | Atten
Range (dB) | Insertion Loss
(dB max.) | VSWR
max | Flatness
+/- (dB) | Model No. |
SMA | 0.45 - 1.0 | 6 | 0.5 | 1.5 | N/A | AH50V081-6 |
0.5 - 1.0 | 6 | 0.5 | 1.5 | N/A | AH50V082-6 |
0.8 - 1.6 | 10 | 0.5 | 1.5 | N/A | AH50V083L-10 |
0.9 - 1.75 | 10 | 0.5 | 1.5 | N/A | AH50V083L1-10 |
1.0 - 2.0 | 10 | 0.5 | 1.5 | N/A | AH50V083-10 |
2.0 - 4.2 | 10 | 0.5 | 1.5 | N/A | AH50V084-10 |
4.0 - 8.0 | 10 | 0.5 | 1.5 | N/A | AH50V085-10 |
7.9 - 12.7 | 10 | 0.5 | 1.5 | N/A | AH50V086-10 |
11.7 - 18.0 | 10 | 0.5 | 1.5 | N/A | AH50V087-10 |
11.7 - 18.0 | 15 | 0.5 | 1.5 | N/A | AH50V087-15 |
TYPE-N | 0.45 - 1.0 | 6 | 0.5 | 1.5 | N/A | AH50V081-6N/F |
0.5 - 1.0 | 6 | 0.5 | 1.5 | N/A | AH50V082-6N/F |
0.8 - 1.6 | 10 | 0.5 | 1.5 | N/A | AH50V083L-10N/F |
0.9 - 1.75 | 10 | 0.5 | 1.5 | N/A | AH50V083L1-10N/F |
1.0 - 2.0 | 10 | 0.5 | 1.5 | N/A | AH50V083-10N/F |
2.0 - 4.2 | 10 | 0.5 | 1.5 | N/A | AH50V084-10N/F |
4.0 - 8.0 | 10 | 0.5 | 1.5 | N/A | AH50V085-10N/F |
7.9 - 12.7 | 10 | 0.5 | 1.5 | N/A | AH50V086-10N/F |
11.7 - 18.0 | 10 | 0.5 | 1.5 | N/A | AH50V087-10N/F |
11.7 - 18.0 | 15 | 0.5 | 1.5 | N/A | AH50V087-15N/F |
