MIS 電容器SemiGen
發布時間：2022-10-14 16:35:19 瀏覽：1190

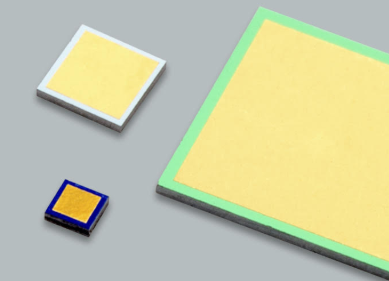

SemiGen的8000和8100系列MIS電容器有很多種電容范圍和尺寸。它是由初級原材料制作而成，由氧化物/氮化層組合而成，提供低介電損耗和高隔離電壓。半根射頻微波芯片電容器產品僅以芯片形式提供。
特征：
極高的Q
超低溫系數
低耗散因數
長期穩定性
正面和背面金觸點
薄至3mil以限制電感
應用：
適用于需要直流電保護、RF旁路或放大器電路、振蕩器、控制開關、濾波器和乘法器的固定調諧的應用。
SemiGen是美國一家晶圓級射頻器件實力派制造商，從晶圓到封裝器件, 品類豐富，從航天級MIL-PRF 38534到軍用MIL-PRF 19500、750和883，SemiGen致力于提供卓越的質量和可靠性。
深圳市立維創展科技有限公司，授權代理于中國區域銷售SemiGen產品，并提供售前和售后技術支持服務。
詳情了解SemiGen請點擊：http://www.bgbga.com/brand/64.html
8100 Series Capacitors, Working Voltage >100V
Capacitance Range | Chip Size (±.002”)
Dim A x Dim B x Dim C | Type |
0.1 pf thru 1.9 pf | .010" x .010" x .005" | 810R1 thru 811R9 |
2.0 pf thru 9.9 pf | .015" x .015" x .005" | 812R0 thru 819R9 |
10.0 pf thru 29.0 pf | .020" x .020" x.006" | 8110R thru 8129R |
30.0 pf thru 49.0 pf | .030" x .030" x.006" | 8130R thru 8149R |
50.0 pf thru 99.0 pf | .040" x .040" x .008" | 8150R thru 8199R |
100 pf thru 199 pf | .050" x .050" x .008" | 81100 thru 81199 |
200 pf thru 399 pf | .070" x .070" x.008" | 81200 thru 81399 |
8000 Series Capacitors, Working Voltage >50V
Capacitance Range | Chip Size (±.002”)
Dim A x Dim B x Dim C | Type |
2.0 pf thru 9.9 pf | .010" x .010" x .005" | 802R0 thru 809R9 |
10.0 pf thru 29.0 pf | .015" x .015" x .005" | 8010R thru 8029R |
30.0 pf thru 49.0 pf | .020" x .020" x.006" | 8030R thru 8049R |
50.0 pf thru 99.0 pf | .030" x .030" x.006" | 8050R thru 8099R |
100 pf thru 199 pf | .040" x .040" x .008" | 80100 thru 80199 |
200 pf thru 399 pf | .050" x .050" x .008" | 80200 thru 80399 |
400 pf thru 600 pf | .070" x .070" x.008" | 80400 thru 80600 |
Tolerance Table
Tolerance + |
A = .05 pF | G = 2% |
B = .1 pF | J = 5% |
C = .25 pF | K = 10% |
D = .5 pF | M = 20% |
F = 1% |
|
Standard Tolerance is +10% |
Maximum Ratings |
Parameters | Rating |
Operating Temperature | -55° C to +150° C |
Storage Temperature | -65° C to +200° C |
Temperature Coefficient | 190 ppm/°C Max
40 ppm/°C typical |
Voltage Breakdown | Varies according |
