WENTEQ同軸連接環行器
發布時間：2021-09-14 16:30:16 瀏覽：1296
環行器單向傳輸的工作原理，是由于采取了鐵氧體旋磁材料。這種材料在另加高頻波場與恒定直流磁場相互作用下，形成旋磁特性（又稱張量磁導率特性）。也正是這種旋磁特性，使在鐵氧體中傳播的電磁波形成極化的旋轉（法拉第效應），及其電磁波能量強烈吸收（鐵磁共振），也正是根據這個旋磁現象，制做出結型隔離器、環行器。它具備體型小、頻帶寬、插損小等特性，因此應用領域十分廣泛。

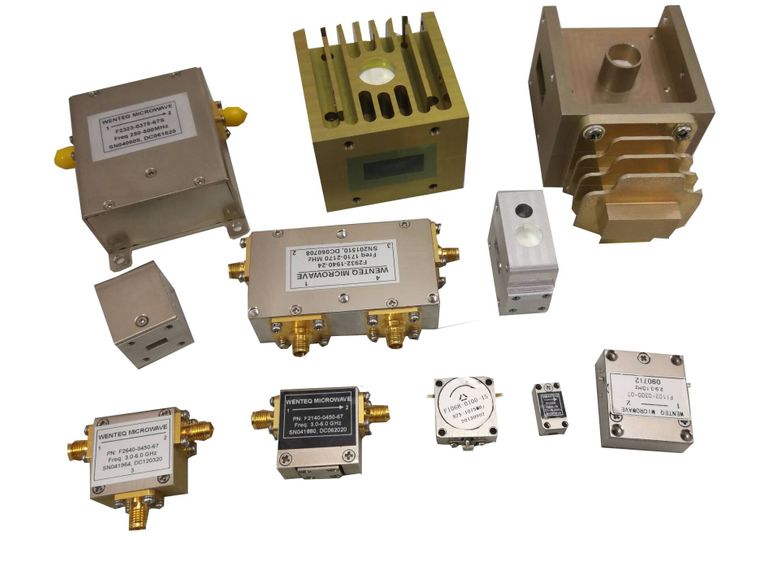

WENTEQ提供范圍廣泛的窄帶和寬帶射頻和微波隔離器和環行器產品，采取同軸、插入式和波導配置。企業產品涵蓋了20MHz至40GHz的頻率范圍。
深圳市立維創展科技是WENTEQ的經銷商，主要提供WENTEQ產品包括環形器、隔離器、負載終端等，產品原裝進口，質量保證，價格優勢，歡迎咨詢。
部分 ＃ | 頻率 (GHz) | 帶寬 (GHz) | 插入 （D b） | 等（分貝） | 駐波比 | 溫度。（C） | 平均 功率（瓦） | 峰值功率 (kW) | Conn. | 尺寸 LxWxH 英寸 (mm) |
|
F2504 | 0.095~0.18 | 0.1 | 0.4 | 20 | 1.2 | -65 | 300 | 4.5 | N | 140x140x50 |
|
F2505 | 0.12~0.18 | 0.07 | 0.5 | 20 | 1.25 | -65 | 1000 |
| DIN 7/16 | 6.3x6.3x2.45 |
|
F2506 | 0.12~0.18 | 0.07 | 0.5 | 20 | 1.25 | -65 | 2000年 |
| DIN 7/16 | 6.3x6.3x5.43 |
|
F2510 | 0.13~0.3 | 0.05 | 0.6 | 20 | 1.2 | -75 | 1000 |
| DIN 7/16 | 120x120x80 |
|
F2514 | 0.15~0.40 | 0.3 | 0.5 | 18 | 1.25 | -10~+60 | 200 | 1200 | N | 100x100x35 |
|
F2515 | 0.15~0.4 | 0.16 | 0.4 | 20 | 1.3 | -70 | 400 | 2 | N | 80x80x34 英寸 |
|
F2518 | 0.15~0.4 | 0.08 | 0.6 | 20 | 1.2 | -120 | 150 |
| N | 3.15x3.15x1.34 英寸 |
|
F2519 | 0.225-0.3 | full | 0.6 | 18 | 1.35 | 0-+85 | 250 |
| N, SMA | 80x80x34 |
|
F2520 | 0.225-0.45 | full | 1 | 18 | 1.4 | -75 | 60 |
| N, SMA | 77x53x26 |
|
F2522 | 0.4-0.6 | 0.08 | 0.5 | 20 | 1.2 | -75 | 1000 |
| DIN7/16,N | 3.7x3.7x3.4 英寸 |
|
F2528 | 0.4-0.8 | 0.08 | 0.5 | 20 | 1.2 | -90 | 300 |
| N型 | 2.52x2.91x1.50 英寸 |
|
F2529 | 0.4-1.2 | 0.08 | 0.5 | 20 | 1.2 | -95 | 200 | 3 | N型 | 2.52x2.91x1.50 英寸 |
|
F2538 | 0.4-1.0 | 100 | 0.5 | 20 | 1.2 | -90 | 50 |
| SMA | 38x38x19 |
|
F2542 | 0.46-0.8 | 200 | 0.5 | 20 | 1.2 | -90 | 50 |
| N, SMA | 48x51x23 |
|
F2546 | 0.50~1.20 | 0.46 | 0.9 | 16 | 1.45 | -20~+70 | 125 |
| SMA | 53x56x20 |
|
F2548 | 0.4-1.0 | 300 | 0.5 | 20 | 1.2 | -90 | 100 |
| SMA | 60x60x30 |
|
F2550 | 0.6~1.2 | 80 | 0.5 | 20 | 1.2 | -95 | 500 |
| DIN 7/16 | 3x3x3.5 英寸 |
|
F2552 | 0.7~1.5 | 0.1 | 0.4 | 20 | 1.2 | 0-+60 | 1000 |
| DIN 7/16 | 3x3x3.5 英寸 |
|
F2557 | 0.96-1.22 | full | 0.5 | 20 | 1.2 | -140 | 30 |
| SMA | 35x35x20 |
|
F2558 | 0.96-1.22 | full | 0.5 | 20 | 1.2 | -140 | 50 |
| N | 50x50x22 |
|
F2560 | 0.96~1.22 | full | 0.5 | 20 | 1.2 | -95 | 160 | 25 | DIN 7/16 | 62x64x38 |
|
F2561 | 0.96~2.0 | 0.06 | 0.5 | 25 | 1.2 | -20~+65 | 160 | 12k | DIN7/16 | 62x64x38 |
|
F2567 | 0.8-1.8 | 200 | 0.3 | 23 | 1.15 | -110 | 100 |
| SMA | 50x50x23 |
|
F2568 | 0.8-1.8 | 500 | 0.5 | 20 | 1.2 | -110 | 50 |
| SMA | 34x34x22 |
|
F2569 | 0.8-1.8 | 100 | 0.5 | 20 | 1.2 | -110 | 50 |
| SMA | 25x25x19 |
|
F2570 | 1.5~2.5 | 0.2 | 0.4 | 20 | 1.25 | -20~+70 | 125 |
| SMA | 34x34x21 |
|
F2572 | 1.0-2.0 | full | 1 | 15 | 1.5 | 0-+45 | 50 |
| N | 80x80x20 |
|
F2575 | 1.0~2.0 | 0.67 | 0.6 | 16 | 1.5 | -10~+50 | 25 | 500 | SMA 或 N | 64x66x26 |
|
F2578 | 1.0-1.6 | 200 | 0.35 | 25 | 1.25 | -95 | 200 | 2 | N,DIN7/16 | 3.15x1.22x3.15 |
|
F2580 | 1.3~1.9 | full | 0.5 | 17 | 1.35 | -110 | 100 |
| SMA | 34x34x21 |
|
F2585 | 1.35~2.7 | full | 0.7 | 15 | 1.5 | -110 | 50 | 0.2 | SMA | 50.8x49.5x19.0 |
|
F2588 | 1.7-2.5 | 200 | 0.3 | 23 | 1.15 | -80 | 50 |
| SMA | 32x35x20 |
|
F2590 | 2.0-3.0 | 300 | 0.4 | 20 | 1.2 | -95 | 50 |
| SMA | 32x35x20 |
|
F2596 | 2.0-3.0 | 300 | 0.4 | 20 | 1.2 | -95 | 200 |
| N | 72x64x58 |
|
F2600 | 1.5~3.0 | 0.67 | 0.5 | 17 | 1.4 | -20~+70 | 50 |
| SMA | 41x41x22 |
|
F2602 | 2.8-3.2 | 200 | 0.4 | 23 | 1.15 | -80 | 10 |
| SMA | 26x30x20 |
|
F2608 | 2.0~3.0 | 0.26 | 0.5 | 18 | 1.35 | -20~+70 | 199 |
| SMA | 59x62x25.4 |
|
F2610 | 3.0~3.8 | 0.24 | 0.5 | 18 | 1.35 | -20~+70 | 100 |
| SMA | 53x56x26 |
|
F2612 | 2.0-4.0 | full | 0.5 | 18 | 1.35 | -115 | 5 |
| SMA | 32x34x18 |
|
F2616 | 2.8-4.0 | 200 | 0.4 | 20 | 1.2 | -95 | 200 |
| N | 83x85x45 |
|
F2622 | 2.0-4.0 | full | 0.5 | 18 | 1.35 | -85 | 25 | 0.25 | SMA | 32x34x18 |
|
F2628 | 3.4~4.8 | full | 0.5 | 19 | 1.3 | -30 ~ +60 | 10 |
| SMA | 21x24.5x13.7 |
|
F2640 | 3.0-6.0 | full | 0.6 | 16 | 1.4 | -100 | 20 |
| SMA | 25.4x27.5x13 |
|
F2648 | 4.5-6.5 | 500 | 0.3 | 23 | 1.15 | -80 | 10 |
| SMA | 22x26x20 |
|
F2658 | 4.0-8.0 | full | 0.5 | 19 | 1.35 | -85 | 5 |
| SMA | 0.87x0.98X0.67英寸 |
|
F2662 | 5.0~10.0 | 0.67 | 0.6 | 18 | 1.3 | -10~+65 | 10 |
| SMA | 20x26x14 |
|
F2666 | 6.0-12.0 | full | 0.6 | 16 | 1.4 | -115 | 10 |
| SMA | 16x21x13 |
|
F2670 | 7.0-18.0 | 1000 | 0.5 | 23 | 1.2 | -80 | 5 |
| SMA | 19x19x13 |
|
F2680 | 5.0-10.0 | 1000 | 0.5 | 20 | 1.25 | -110 | 10 |
| SMA | 16.7x16.1x13.6 |
|
F2700 | 6.0-18.0 | full | 1.5 | 10 | 1.9 | -110 | 10 |
| SMA | 19x20x13 |
|
F2712 | 8.0-12.4 | full | 0.5 | 18 | 1.35 | -80 | 10 |
| SMA | 13x17x13 |
|
F2716 | 8.0~18.0 | 0.15 | 0.5 | 20 | 1.2 | -90 | 30 |
| SMA | 25x26.5x23 |
|
F2720 | 12~18 | 0.4 | 0.6 | 18 | 1.35 | -40~+80 | 10 |
| SMA | 15x19x13 |
|
F2725 | 10.9~12.8 | full | 0.5 | 20 | 1.25 | -110 | 10 |
| SMA | 12x17x12 |
|
F2740 | 8.0~18.0 | full | 0.8 | 15 | 1.5 | -110 | 10 |
| SMA | 15x20x13 |
|
同軸集總元件循環器 |
|
|
|
|
|
|
|
|
|
|
|
部分 ＃ | 頻率 (兆赫) | 帶寬 (MHz) | 插入 （D b） | 等。（D b） | 駐波比 | 溫度。（C） | 平均 功率（瓦） | Conn. | 尺寸長x寬x高（毫米） |
|
|
F2805 | 20-50 | 0.08 | 1 | 18 | 1.35 | -70 | 30 | N, SMA | 75x100x30 |
|
|
F2810 | 45-130 | 10 | 0.8 | 20 | 12 | -80 | 100 | N | 95x100x56 |
|
|
F2812 | 40~100 | 0.1 | 0.8 | 18 | 1.3 | -80 | 250 | N | 95x100x56.5 |
|
|
F2815 | 60-200 | 0.25 | 0.6 | 30 | 1.2 | 0-+50 | 100 | N | 70x70x32 |
|
|
F2816 | 80-250 | 0.22 | 0.6 | 20 | 1.2 | -70 | 50 | N | 70x70x32 |
|
|
F2820 | 80~180 | 0.22 | 0.6 | 20 | 1.2 | 0-+60 | 300 | N | 90x90x38 |
|
|
F2823 | 100~500 | 0.67 | 1 | 15 | 1.5 | 0-+60 | 20 | SMA, N | 2.09x3.03x1.02 |
|
|
F2826 | 120-300 | 0.1 | 0.8 | 18 | 1.3 | -65 | 30 | N, SMA | 1.97x2.2x0.95英寸 |
|
|
F2832 | 470-862 | full | 1.2 | 15 | 1.5 | -110 | 15 | SMA | 41x49x18 |
|
|
F2840 | 250-600 | 0.08 | 0.6 | 20 | 1.2 | -65 | 50 | N | 30x30x19 |
|
|
F2870 | 500-1000 | full | 1.5 | 14 | 1.6 | -90 | 10 | SMA | 41x49x20 |
|
|
同軸四端口環行器 |
|
|
|
|
|
|
|
|
|
|
|
類型 | 頻率 (GHz) | 帶寬 (MHz) | SJ Ins。（D b） | DJ Ins。（D b） | SJ 等。（D b） | DJ 伊索。（D b） | 駐波比 | 溫度。（C） | 正向連續波功率 (W) | Conn. | 尺寸長x寬x高（毫米） |
F2915 | 0.07-0.25 | 0.22 | 0.6 | 1.2 | 20 | 40 | 1.2 | -75 | 100 | N,SMA | 5.5X2.76X1.26 |
F2916 | 0.08-0.25 | 0.22 | 0.6 | 1.2 | 20 | 40 | 1.2 | -70 | 50 | N, SMA | 5.5X2.76X1.25 |
F2917 | 0.9-1.8 | 0.24 | 0.5 | 1 | 20 | 40 | 1.2 | -90 | 50 | SMA | (70X35X22) |
F2928 | 1.9-2.5 | 10 | 0.5 | 0.8 | 20 | 40 | 1.2 | -110 | 10 | N, SMA | (70x35x20) |
F2932 | 1.7-3.0 | 400 | 0.5 | 1 | 20 | 40 | 1.2 | -110 | 30 | SMA, N | (64X35X20) |
F2936 | 2.8-4.0 | 500 | 0.5 | 1 | 20 | 40 | 1.2 | -90 | 200 | DIN7/16, N | (120X60X30 |
F2942 | 0.4-0.8 | 90 | 0.5 | 1 | 20 | 40 | 1.2 | -90 | 50 | SMA, N | 3.8X2X1.0 |
F2948 | 0.4-0.97 | 300 | 0.5 | 1 | 17 | 34 | 1.35 | -110 | 50 | SMA, N | (120X60X30) |
F2950 | 0.8-1.8 | 200 | 0.5 | 1 | 20 | 40 | 1.2 | -90 | 50 | SMA | (70X35X22) |
F2962 | 2.0-4.0 | full | 0.5 | 1 | 16 | 32 | 1.4 | -90 | 10 | SMA | (61x30x18) |
