Model | Frequency
Min (MHz) | Frequency
Max (GHz) | Frequency Response | Maximum VSWR | Output
Capacitance | Input
Connector | Output
Connector |
203A | 10 | 40 | ± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz | 1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz | 30 pF | 2.4 mm Male | SMA Female |
203B | 10 | 40 | ± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz | 1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz | 30 pF | 2.4 mm Male | BNC Female |
203S | 10 | 40 | ± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz | 1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz | 30 pF | 2.4 mm Male | SMC Jack |
203AK | 10 | 40 | ± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz | 1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz | 30 pF | 2.92 mm Male | SMA Female |
203BK | 10 | 40 | ± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz | 1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz | 30 pF | 2.92 mm Male | BNC Female |
203SK | 10 | 40 | ± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz | 1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz | 30 pF | 2.92 mm Male | SMC Jack |
303A | 100 | 40 | ± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz | 1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz | 3 pF | 2.4 mm Male | SMA Female |
303B | 100 | 40 | ± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz | 1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz | 3 pF | 2.4 mm Male | BNC Female |
303S | 100 | 40 | ± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz | 1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz | 3 pF | 2.4 mm Male | SMC Jack |
303AK | 100 | 40 | ± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz | 1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz | 3 pF | 2.92 mm Male | SMA Female |
303BK | 100 | 40 | ± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz | 1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz | 3 pF | 2.92 mm Male | BNC Female |
303SK | 100 | 40 | ± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz
± 1.5 dB to 40 GHz | 1.35 to 20 GHz
1.50 to 26.5 GHz
2.00 to 40 GHz | 3 pF | 2.92 mm Male | SMC Jack |
202A | 10 | 26.5 | ± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz | 1.35 to 20 GHz
1.50 to 26.5 Ghz | 30 pF | 3.5 mm Male | SMA Female |
202B | 10 | 26.5 | ± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz | 1.35 to 20 GHz
1.50 to 26.5 Ghz | 30 pF | 3.5 mm Male | BNC Female |
202S | 10 | 26.5 | ± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz | 1.35 to 20 GHz
1.50 to 26.5 Ghz | 30 pF | 3.5 mm Male | SMC Jack |
302A | 100 | 26.5 | ± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz | 1.35 to 20 GHz
1.50 to 26.5 Ghz | 3 pF | 3.5 mm Male | SMA Female |
302B | 100 | 26.5 | ± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz | 1.35 to 20 GHz
1.50 to 26.5 Ghz | 3 pF | 3.5 mm Male | BNC Female |
302S | 100 | 26.5 | ± 0.5 dB to 20 GHz
± 0.8 dB to 26.5 GHz | 1.35 to 20 GHz

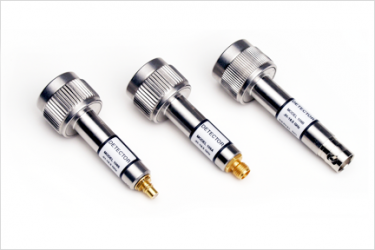

1.50 to 26.5 Ghz | 3 pF | 3.5 mm Male | SMC Jack |
201A | 10 | 20 | ± 0.5 dB | 1.35 | 30 pF | 3.5 mm Male | SMA Female |
201B | 10 | 20 | ± 0.5 dB | 1.35 | 30 pF | 3.5 mm Male | BNC Female |
201S | 10 | 20 | ± 0.5 dB | 1.35 | 30 pF | 3.5 mm Male | SMC Jack |
301A | 100 | 20 | ± 0.5 dB | 1.35 | 3 pF | 3.5 mm Male | SMA Female |
301B | 100 | 20 | ± 0.5 dB | 1.35 | 3 pF | 3.5 mm Male | BNC Female |
301S | 100 | 20 | ± 0.5 dB | 1.35 | 3 pF | 3.5 mm Male | SMC Jack |
109A | 10 | 18.5 | ± 0.3 dB to 12.4 GHz
± 0.6 dB to 18.5 GHz | 1.15 to 4.0 GHz
1.30 to 15 GHz
1.40 to 18.5 GHz | 30 pF | N Male | SMA Female |
109B | 10 | 18.5 | ± 0.3 dB to 12.4 GHz
± 0.6 dB to 18.5 GHz | 1.15 to 4.0 GHz
1.30 to 15 GHz
1.40 to 18.5 GHz | 30 pF | N Male | BNC Female |
109S | 10 | 18.5 | ± 0.3 dB to 12.4 GHz
± 0.6 dB to 18.5 GHz | 1.15 to 4.0 GHz
1.30 to 15 GHz
1.40 to 18.5 GHz | 30 pF | N Male | SMC Jack |
209A | 100 | 18.5 | ± 0.3 dB to 12.4 GHz ± 0.6 dB to 18.5 GHz | 1.15 to 4 GHz 1.30 to 15 GHz 1.40 to 18.5 GHz | 3 pF | N Male | SMA Female |
209B | 100 | 18.5 | ± 0.3 dB to 12.4 GHz ± 0.6 dB to 18.5 GHz | 1.15 to 4 GHz 1.30 to 15 GHz 1.40 to 18.5 GHz | 3 pF | N Male | BNC Female |
209S | 100 | 18.5 | ± 0.3 dB to 12.4 GHz ± 0.6 dB to 18.5 GHz | 1.15 to 4 GHz 1.30 to 15 GHz 1.40 to 18.5 GHz | 3 pF | N Male | SMC Jack |
