Custom MMIC混頻器
發布時間：2021-06-30 17:04:10 瀏覽：1799
Custom MMIC為射頻信號的上轉換或下轉換提供各種類型混頻器，主要包括獨立的混頻器、集成緩沖放大器的混頻器和將緩沖放大器與板上射頻巴倫集成在一起的雙分支解決方案。Custom MMIC混頻器采用行業標準的軟件包來提供技術領先的性能指標。
主要特性
高線形；
低電流損耗；
目標技術應用；
車輛；
基站設備；
中繼器；
國防通訊設備；
點對點無線電；
深圳市立維創展科技是CUSTOM MMIC的經銷商，立維創展協助選取滿足需求的最合適的MMIC優化微波射頻射頻信號鏈。CUSTOM MMIC是一個完整性的ISO認證和同類型絕佳MMICs經銷商。供應迅速增長的高性能射頻/微波射頻MMIC產品系列。
Part # | RF Min
GHz | RF Max
GHz | IF Min
GHz | IF Max
GHz | LO Min
GHz | LO Max
GHz | Conversion Gain
dB | LO Drive
dBm | OP1dB
dBm | IIP3
dBm | OIP3
dBm | NF
dB | LO-RF Isolation
dB | LO-IF Isolation
dB |
CMD177 | 6 | 14 | DC | 5 | 6 | 14 | -6.5 | 13 |
| 16 |
|
| 43 | 37 |
CMD177C3 | 6 | 14 | DC | 5 | 6 | 14 | -6.5 | 13 |
| 16 |
|
| 43 | 37 |
CMD178C3 | 11 | 21 | DC | 6 | 11 | 21 | -6 | 13 |
| 16 |
|
| 45 | 45 |
CMD179 | 16 | 26 | DC | 9 | 16 | 26 | -6.5 | 13 |
| 17 |
|
| 40 | 48 |
CMD179C3 | 16 | 26 | DC | 9 | 16 | 26 | -6.5 | 13 |
| 17 |
|
| 40 | 48 |
CMD180 | 20 | 32 | DC | 10 | 20 | 32 | -7 | 13 |
| 18 |
|
| 36 | 36 |
CMD180C3 | 20 | 32 | DC | 10 | 20 | 32 | -7 | 13 |
| 18 |
|
| 36 | 36 |
CMD181 | 26 | 45 | DC | 12 | 26 | 45 | -6.5 | 17 |
| 22 |
|
| 37 | 29 |
CMD181K3 | 26 | 44 | DC | 10 | 26 | 44 | -10 | 17 | 4 | 27 | 17 | 10 | 40 | 32 |
CMD182 | 6 | 10 | DC | 3.5 | 6 | 10 | -6 | 15 |
| 18 |
|
| 50 | 20 |
CMD182C4 | 6 | 10 | DC | 3.5 | 6 | 10 | -6 | 15 |
| 18 |
|
| 46 | 20 |
CMD183C4 | 7.5 | 13 | DC | 4.5 | 7.5 | 13 | -5.5 | 15 |
| 18 |
|
| 43 | 23 |
CMD251C3 | 4 | 8.5 | DC | 2.2 | 4 | 8.5 | -7 | 17 |
| 21 |
|
| 45 | 36 |
CMD252C4 | 4 | 8 | DC | 2.4 | 4 | 8 | -6.5 | 20 |
| 25 |
|
| 52 | 27 |
CMD253 | 6 | 14 | DC | 5 | 6 | 14 | -6 | 19 |
| 23 |
|
| 43 | 39 |
CMD253C3 | 6 | 14 | DC | 5 | 6 | 14 | -6 | 19 |
| 23 |
|
| 43 | 39 |
CMD254C3 | 11 | 21 | DC | 6 | 11 | 21 | -6 | 19 |
| 22 |
|
| 48 | 44 |

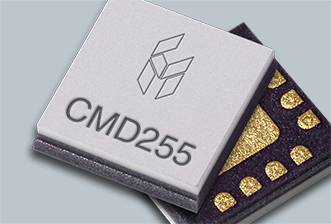

CMD255C3 | 16 | 26 | DC | 9 | 16 | 26 | -6.5 | 19 |
| 24 |
|
| 40 | 33 |
CMD257C4 | 6 | 10 | DC | 3.5 | 6 | 10 | -5.5 | 21 |
| 25 |
|
| 40 | 18 |
CMD258 | 7.5 | 13 | DC | 3.5 | 7.5 | 13 | -5.5 | 27 |
| 25 |
|
| 38 | 20 |
CMD258C4 | 7.5 | 13 | DC | 3.5 | 7.5 | 13 | -5.5 | 21 |
| 25 |
|
| 38 | 20 |
CMD261 | 30 | 46 | 5 | 20 | 30 | 46 | -8 | 19 |
| 21 |
|
| 30 | 20 |
CMD303 | 13 | 21 | DC | 3 | 13 | 21 | -8.5 | 2 |
| 12 |
|
| 28 | 48 |
CMD303C3 | 13 | 21 | DC | 4 | 13 | 21 | -10 | 2 |
| 13 |
|
| 22 | 34 |
CMD310 | 20 | 32 | DC | 7 | 20 | 32 | -9.5 | -4 |
| 10 |
|
| 36 | 53 |
CMD310C3 | 20 | 32 | DC | 7 | 20 | 32 | -8.5 | -2 |
| 11 |
|
| 36 | 53 |
CMD312 | 4 | 28 | DC | 3 | 4 | 28 | -8 | 17 |
| 20 |
|
| 43 | 50 |
CMD313 | 6 | 45 | DC | 3 | 6 | 45 | -9 | 17 |
| 20 |
|
| 41 | 42 |
QPX0001 | 6 | 26 | DC | 3 | 6 | 26 | -8 | 17 | 6 | 21 | 13 | 8 | 40 | 27 |
QPX0002 | 2.5 | 15 | DC | 1 | 2.5 | 15 | -8 | 17 |
|
|
|
| 45 | 25 |
QPX0003D | 30 | 40 | DC | 5 | 30 | 40 | -7 | 15 |
|
|
|
| 35 | 25 |
QPX0004D | 24 | 34 | DC | 7 | 24 | 34 | -9 | 15 |
|
|
|
| -30 | -24 |
