Teledyne防務電子衰減器
發布時間：2021-06-21 17:02:29 瀏覽：1388
Teledyne防務電子提供各式各樣的模擬控制衰減器，工作頻率范圍為10MHz至26ghz。鑒于諸多模塊在眾多倍頻程范圍內運行，控制開關速度小于100ns，衰減系數控制高達50dB，Teledyne防務電子產品能夠滿足您的特殊要求。
特性
頻率： 10MHz至26GHz；
帶寬： <1% 到多倍頻程；
包裝：連接器、引腳和SM；
出口分類： EAR99；
與其他產品集成：放大器、轉換器、合成器；
深圳市立維創展科技是Teledyne的經銷商，提供Teledyne產品涵蓋LDMOS、GaN、GaAs和InP。Teledyne產品線支持寬頻帶、窄帶、脈沖放大器，頻率1MHz~220GHz，功率mW~10kW，優勢渠道提供Teledyne訂貨，歡迎咨詢。
Model | Frequency Range MHz | Insertion Loss dB Typ. Max. 0/50C | Attenuation dB Typ. Min. 0/50C | Typ. | SWR In/Out Max. 0/50C | Switching Speed Typ. (ms) Max. (ms) 10-90% 100% | Control Volts I(mA) Max. | Volts | Bias I(mA) Max. |
Attenuators ? Available in TO-8 Attenuator, Surface Mount and SMA Packages (depending on model) |
UTF-015 | 5-500 | 1.5 | 2.0 | 20 | 15 | 1.5 | 2.0 | 500 | 800 | 0 to 10 | 0 to 7 | 15 | 10 |
| 500-1000 | 2.0 | 2.5 | 20 | 15 | 1.6 | 2.1 | 500 | 800 | 0 to 10 | 0 to 7 | 15 | 10 |
| 5-500 | 2.0 | 2.6 | 36 | 30 | 1.3 | 2.0 | 2.0 | 125 | 0 to 15 | 0 to 7 | 15 | 15 |
GC1275 | 5-1000 | 2.3 | 2.8 | 30 | 25 | 1.6 | 2.0 | 2.0 | 125 | 0 to 15 | 0 to 7 | 15 | 15 |
(75Ω) | 5-1200 | 2.5 | 3.0 | 27 | 23 | 1.6 | 2.0 | 2.0 | 125 | 0 to 15 | 0 to 7 | 15 | 15 |
| 5-500 | 2.0 | 2.5 | 36 | 31 | 1.5 | 2.0 | 2.0 | 125 | 0 to 15 | 0 to 7 | 15 | 15 |

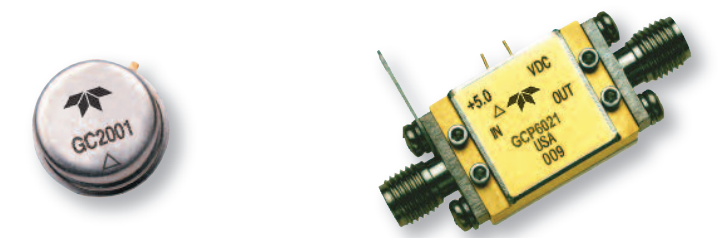

GC2001 | 5-1000 | 2.0 | 2.5 | 30 | 25 | 1.5 | 2.0 | 2.0 | 125 | 0 to 15 | 0 to 7 | 15 | 15 |
| 5-2000 | 2.8 | 3.3 | 23 | 20 | 1.6 | 2.2 | 2.0 | 125 | 0 to 15 | 0 to 7 | 15 | 15 |
| 5-500 | 1.5 | 2.0 | 36 | 31 | 1.6 | 2.0 | 2.0 | 125 | 0 to 15 | 0 to 7 | 5 | 10 |
GC2002 | 5-1000 | 2.0 | 2.5 | 30 | 25 | 1.6 | 2.0 | 2.0 | 125 | 0 to 15 | 0 to 7 | 5 | 10 |
| 5-2000 | 2.5 | 3.0 | 23 | 20 | 1.7 | 2.2 | 2.0 | 125 | 0 to 15 | 0 to 7 | 5 | 10 |
| 5-500 | 2.0 | 2.5 | 33 | 27 | 1.5 | 2.0 | 75 | 200 | 1 to 15 | 0 to 7 | 15 | 20 |
| 500-1000 | 2.0 | 2.5 | 28 | 23 | 1.5 | 2.0 | 75 | 200 | 1 to 15 | 0 to 7 | 15 | 20 |
UTF-025 | 1000-2000 | 2.8 | 3.3 | 23 | 20 | 1.8 | 2.0 | 75 | 200 | 1 to 15 | 0 to 7 | 15 | 20 |
| 2000-2500 | 3.5 | 4.0 | 17 | 15 | 1.8 | 2.0 | 75 | 200 | 1 to 15 | 0 to 7 | 15 | 20 |
| 10-500 | 2.0 | 2.8 | 52 | 40 | 1.2 | 1.8 | <1.5 | 9.0 | 0 to 15 | 0 to 10 | 15 | 12 |
| 500-1000 | 2.3 | 2.8 | 43 | 35 | 1.2 | 1.8 | <1.5 | 9.0 | 0 to 15 | 0 to 10 | 15 | 12 |
GC2510 | 1000-2000 | 2.8 | 3.3 | 38 | 30 | 1.2 | 2.0 | <1.5 | 9.0 | 0 to 15 | 0 to 10 | 15 | 12 |
| 2000-2500 | 3.0 | 3.5 | 35 | 28 | <1.3 | 2.2 | <1.5 | 9.0 | 0 to 15 | 0 to 10 | 15 | 12 |
| 10-500 | 2.0 | 2.8 | 52 | 40 | 1.2 | 1.8 | 200 hsec | 1.0 | 0 to 15 | 0 to 10 | 15 | 12 |
| 500-1000 | 2.3 | 2.8 | 43 | 35 | 1.2 | 1.8 | 200 hsec | 1.0 | 0 to 15 | 0 to 10 | 15 | 12 |
GC2530 | 1000-2000 | 2.8 | 3.3 | 38 | 30 | 1.2 | 2.0 | 200 hsec | 1.0 | 0 to 15 | 0 to 10 | 15 | 12 |
| 2000-2500 | 3.0 | 3.5 | 35 | 28 | <1.3 | 2.2 | 200 hsec | 1.0 | 0 to 15 | 0 to 10 | 15 | 12 |
| 30-250 | 2.0 | 2.2 | 45 | 40 | 1.5 | 2.0 | 400 | 600 | 0 to -10 | 0 to 75 | 15 | 10 |
UTF-040 | 250-500 | 2.0 | 2.2 | 40 | 35 | 1.5 | 2.0 | 400 | 600 | 0 to -10 | 0 to 75 | 15 | 10 |
| 500-1000 | 2.0 | 2.5 | 35 | 30 | 1.5 | 2.5 | 400 | 600 | 0 to -10 | 0 to 75 | 15 | 10 |
| 100-500 | 2.0 | 2.5 | 45 | 40 | 1.7 | 2.0 | 0.5 | 2 | 0 to 15 | 0 to 10 | 15 | 10 |
UTF-030 | 500-1000 | 2.5 | 3.0 | 40 | 35 | 1.7 | 2.0 | 0.5 | 2 | 0 to 15 | 0 to 10 | 15 | 10 |
| 1000-2000 | 3.0 | 3.5 | 30 | 25 | 1.7 | 2.0 | 0.5 | 2 | 0 to 15 | 0 to 10 | 15 | 10 |
| 500-1000 | 2.3 | 2.8 | 43 | 35 | 1.2 | 1.8 | <100 hsec | 1.0 | 0 to 15 | 0 to 10 | 15 | 12 |
GC2534 | 1000-2000 | 2.8 | 3.3 | 38 | 30 | 1.2 | 2.0 | <100 hsec | 1.0 | 0 to 15 | 0 to 10 | 15 | 12 |
| 2000-2500 | 3.0 | 3.5 | 35 | 28 | <1.3 | 2.2 | <100 hsec | 1.0 | 0 to 15 | 0 to 10 | 15 | 12 |
| 1000-2000 | 2.5 | 3.0 | 25.5 | 23.5 | 1.6 | 2.0 | 5 | 25 | -2 to -10 | 0 to 40 | 15 | 50 |
Model | Frequency Range MHz | Insertion Loss dB Typ. Max. 0/50C | Attenuation dB Typ. Min. 0/50C | Typ. | SWR In/Out Max. 0/50C | Switching Speed Typ. (ms) Max. (ms) 10-90% 100% | Control Volts I(mA) Max. | Volts | Bias I(mA) Max. |
Attenuators ? Available in TO-8 Attenuator, Surface Mount and SMA Packages (depending on model) |
| 5-500 | 2.0 | 2.8 | 36 | 30 | 1.3 | 2.0 | 2.0 | 75 | +2 to –10 | 0 to 15 | 15 | 40 |
GR2010^ | 5-1000 | 2.3 | 3.0 | 30 | 25 | 1.6 | 2.0 | 2.0 | 75 | +2 to –10 | 0 to 15 | 15 | 40 |
| 5-2000 | 2.8 | 3.5 | 27 | 23 | 1.6 | 2.0 | 2.0 | 75 | +2 to –10 | 0 to 15 | 15 | 40 |
UTF-0351 | 50-1000 | 2.0 | 2.5 | 25.5 | 23.5 | 1.6 | 2.0 | 5 | 25 | -2 to -10 | 0 to 40 | 15 | 50 |
| 1000-2000 | 2.5 | 3.0 | 25.5 | 23.5 | 1.6 | 2.0 | 5 | 25 | -2 to -10 | 0 to 40 | 15 | 50 |
| 100-1000 | 2.5 | 3.0 | 45 | 40 | 1.7 | 2.0 | 0.5 | 2.0 | 0 to 15 | 0 to 10 | 15 | 10 |
PSF-030-25 | 1000-2000 | 2.5 | 3.0 | 40 | 35 | 1.7 | 2.0 | 0.5 | 2.0 | 0 to 15 | 0 to 10 | 15 | 10 |
| 2000-4000 | 2.5 | 3.0 | 30 | 25 | 1.7 | 2.0 | 0.5 | 2.0 | 0 to 15 | 0 to 10 | 15 | 10 |
GRS6012 | 0.3-6000 | 2.0 | 4.5 | 20 | 18 | 1.8 | 2.0 | <100 hsec | 160 hsec | 0 to -5 | ±5 | 3 |
Model | Frequency Range GHz | Insertion Loss dB Typ. Max. 0/50C | Attenuation dB Typ. Min. 0/50C | Typ. | SWR In/Out | Max. 0/50C | Switching Speed Typ. (ms) 10-90% | Max. (ms) 100% | Control Volts | I(mA) Max. |
Attenuators ? Available in CougarPak? Connectorized Packages |
GCP6021 | 2.0 - 6.0 | 1.5 | 2.5 | 17 | 15 | 1.5 | 2.1 | 3.8 | 4.5 | 5 | 26 |
| 3.0 - 5.0 | 1.6 | 1.8 | 16 | 15 | 1.5 | 1.8 | 3.8 | 4.5 | 5 | 26 |
GCP8022 | 4.0 - 7.0 | 2.4 | 2.9 | 40 | 38 | 1.5 | 1.7 | 2.5 | 4.7 | 5 | 52 |
| 3.0 - 8.0 | 3.0 | 3.5 | 40 | 37 | 1.5 | 1.7 | 2.5 | 4.7 | 5 | 52 |
| 5.0 - 8.0 | 2.2 | 2.7 | 22 | 20 | 2.0 | 2.2 | 2.0 | 4.5 | 5 | 25 |
GCP14021 | 8.0 - 14.0 | 2.0 | 2.5 | 21 | 19 | 1.6 | 1.8 | 2.0 | 4.5 | 5 | 25 |
| 14.0 - 15.0 | 2.8 | 3.0 | 22 | 20 | 1.3 | 1.5 | 2.0 | 4.5 | 5 | 25 |
Model | Frequency Range MHz | Typical Current Drain Control Voltage= Control Voltage= -10 V @ 0 V @ Min. Attenuation Max. Attenuation V- V+ Vcon V- V+ Vcon | Linearity Specifications^ 10-1000 MHz Attenuation Range: 0 to 20 dB 25°C Volts -55°/85°C Typ. Max. Typ. Max. |
Attenuator Linearizer ? Available in Linearized TO-8 Attenuator and SMA Packages |
LG20011 | 5-2000 | 5.0 mA | 24.0 mA | 15.0 mA | 5.0 mA | 11.0 mA | 2.5 mA | <±1.0 dB | <±1.5 dB | <±1.5 dB | <±2.0 dB |
