VICOR電源ENMods-PFC前端
發布時間：2021-05-07 17:01:36 瀏覽：2470

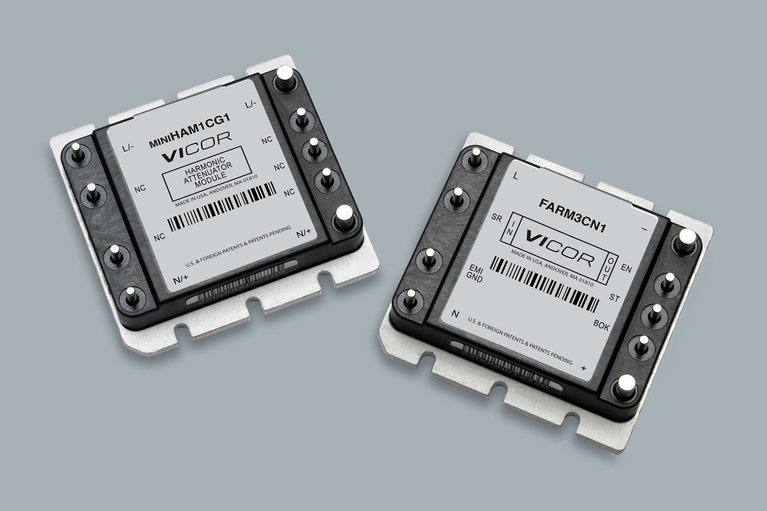

VICOR電源模塊ENMOD系統是集無源功率因數校正和自動調節功能模塊于一體式的交流前端解決方案。VICOR電源模塊的ENMOD操作系統選用濾波和保持電容相互結合的形式，充分滿足EN61000-3-2諧波電流，EN55022B級輻射，EN61000-4-5浪涌抗擾度，EN61000-4-11線干擾和EN61000-3-3浪涌電流需求。與有源PFC解決方案有所不同，MiniHAM不產生EMI，大大簡化和減少了操作系統噪聲和濾波需求。
特征和優勢
自動調節115/230Vac輸入；
諧波電流衰減系數滿足EN61000-3-2；
EMI濾波滿足EN55022，B級 （建議帶濾波器）；
瞬態抗擾度滿足EN61000-4-5。
深圳市立維創展科技是VICOR電源模塊的代理經銷商，主要提供DC-DC、AC-DC電源模塊，隔離、非隔離電源模塊轉換器等，立維創展致力為客戶提供高品質、高質量、價格公正的微波元器件產品，歡迎咨詢.
詳情了解VICOR電源模塊請點擊：http://www.bgbga.com/brand/18.html
或聯系我們的銷售工程師：0755-83642657 QQ: 2295048674
Part Number | 產品等級 | 引腳形式 | 符合RoHS | 基板 |
EN1TS1 | –40°C to +100°C | Short ModuMate | No | Slotted |
EN1TN2 | –40°C to +100°C | Long ModuMate | No | Threaded |
EN1TN1 | –40°C to +100°C | Long ModuMate | No | Slotted |
EN1TG1 | –40°C to +100°C | Long RoHS | Yes | Slotted |
EN1T23 | –40°C to +100°C | Long | No | Through hole |
EN1T22 | –40°C to +100°C | Long | No | Threaded |
EN1T21 | –40°C to +100°C | Long | No | Slotted |
EN1T11 | –40°C to +100°C | Short | No | Slotted |
EN1HN3 | –40°C to +100°C | Long ModuMate | No | Through hole |
EN1HN1 | –40°C to +100°C | Long ModuMate | No | Slotted |
EN1HG1 | –40°C to +100°C | Long RoHS | Yes | Slotted |
EN1H21 | –40°C to +100°C | Long | No | Threaded |
EN1CS1 | –20°C to +100°C | Short ModuMate | No | Slotted |
EN1CN3 | –20°C to +100°C | Long ModuMate | No | Through hole |
EN1CN2 | –20°C to +100°C | Long ModuMate | No | Threaded |
EN1CN1 | –20°C to +100°C | Long ModuMate | No | Slotted |
EN1CG3 | –20°C to +100°C | Long RoHS | Yes | Through hole |
EN1CG2 | –20°C to +100°C | Long RoHS | Yes | Threaded |
EN1CG1 | –20°C to +100°C | Long RoHS | Yes | Slotted |
EN1CF2 | –20°C to +100°C | Short RoHS | Yes | Threaded |
EN1C23 | –20°C to +100°C | Long | No | Through hole |
EN1C22 | –20°C to +100°C | Long | No | Threaded |
EN1C21 | –20°C to +100°C | Long | No | Slotted |
EN1C13 | –20°C to +100°C | Short | No | Through hole |
EN1C12 | –20°C to +100°C | Short | No | Threaded |
EN1C11 | –20°C to +100°C | Short | No | Slotted |
