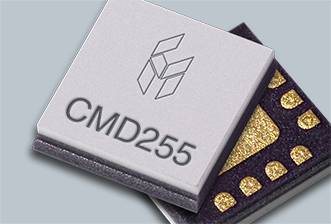

Custom MMIC驅動器放大器
發布時間：2020-10-16 16:30:13 瀏覽：1900
Custom MMIC驅動器放大器的設計是為了在發射機鏈中的最終功率放大器之前為增益級提供良好的線性或效率性能。Custom MMIC驅動器放大器使用諸如InGaPHBT、功率PHEMT、E/D PHEMT和GaN等工藝技術來支持高達46 GHz的頻率。
Custom MMIC驅動器放大器的主要特性
高效
高線性
高收益
定制MMIC驅動器放大器的典型應用
基站
國防通訊
電子戰與雷達
光學
點對點無線電
VSAT
深圳市立維創展科技是Custom MMIC的經銷商，立維創展協助選取滿足需求的最合適的MMIC優化微波射頻射頻信號鏈。Custom MMIC是一個完整性的ISO認證和同類型絕佳MMICs經銷商。供應迅速增長的高性能射頻/微波射頻MMIC產品系列。
Part # | Frequency Min
MHz | Frequency Max
MHz | Gain
dB | OP1dB
dBm | OIP3
dBm | NF
dB | Voltage
V | Current
mA | Package Type | Package
mm |
CMD169P4 | 5,000 | 7,000 | 19 | 28.4 | 37 | 6.5 | 7 | 375 | Plastic QFN | 4.0 x 4.0 |
CMD170P4 | 7,500 | 9,000 | 30 | 28.3 | 34 | 6.5 | 7 | 365 | Plastic QFN | 4.0 x 4.0 |
CMD187C4 | 2,000 | 20,000 | 22.5 | 13 | 29 | 6 | 3 | 115 | Ceramic QFN | 4.0 x 4.0 |
CMD191C4 | 4,000 | 10,000 | 20 | 21.5 | 30 | 4.5 | 5 | 123 | Ceramic QFN | 4.0 x 4.0 |
CMD231 | 2,000 | 6,000 | 14.5 | 13.5 | 23.5 | 4.5 | 3 to 8 | 45 | Die |
|
CMD231C3 | 2,000 | 6,000 | 14.5 | 13.5 | 23.5 | 4.5 | 3 to 8 | 45 | Ceramic QFN | 3.0 x 3.0 |
CMD232 | 2,000 | 9,000 | 15 | 17 | 23 | 4.5 | 5 to 6 | 90 | Die |
|
CMD232C3 | 2,000 | 9,000 | 15 | 17 | 23 | 4.5 | 5 to 6 | 90 | Ceramic QFN | 3.0 x 3.0 |
CMD295 | 2,000 | 20,000 | 26.5 | 16 | 28.5 | 3.5 | 3 | 135 | Die |
|
CMD295C4 | 2,000 | 20,000 | 27 | 16 | 29 | 3 | 2 to 4 | 145 | Ceramic QFN | 4.0 x 4.0 |
CMD314 | DC | 10,000 | 18 | 30 | 34 | 4 | 12 | 450 | Die |
|
CMD315C4 | 4,000 | 10,000 | 19.5 | 21 | 33 | 5.5 | 5 | 143 | Ceramic QFN | 4.0 x 4.0 |
CMD317 | 1,000 | 24,000 | 16 | 24 | 33 | 3 | 5 to 8 | 225 | Die |
|
QPA2225D | 28,000 | 38,000 |
|
|
|
| 20 | 64 |
| 1.65 x 0.67 x 0.05 |
QPA9119 | 400 | 4,200 | 17.1 | 27.2 | 44 | 4.8 | 5 | 137 | QFN, 16-pin | 3.0 x 3.0 x 0.85 |
QPA9120 | 1,800 | 5,000 | 29 | 22 | 35 | 1.5 | 5 | 96 | QFN | 3x3 |
QPA9121 | 2,300 | 5,000 | 28 |
| 32 | 5 | 5 | 95 | SMT Laminate | 3 x 3 |
QPA9122 | 2.3 | 5.0 | 37 |
| 32 | 5 | 5 | 95 | SMT Laminate | 3 x 3 |
QPA9501 | 5,100 | 5,900 | 32 | 33 |
| 7 | 3.3 to 5 | 520 | QFN, 20-pin | 4.0 x 4.0 x 0.85 |
QPA9801 | 1,805 | 2,400 | 20 | 26.4 | 41.6 | 1.5 | 5 | 296 | QFN, 16-pin | 5.0 x 5.0 x 1.12 |
QPA9805 | 600 | 1,000 | 20 | 27.4 | 43.2 | 4.5 | 5 | 260 |
| 5.0 x 5.0 |
QPA9807 | 2,300 | 2,700 | 20 | 24.7 | 40.3 | 1.4 | 5 | 267 | SMT | 5.0 x 5.0 |
QPA9842 | 2,700 | 3,800 | 19.5 | 25 | 40.3 | 2.3 | 5 | 271 |
| 5 x 5 |
RF3827 | 5 | 1,500 | 20.5 | 25 | 38 | 1.3 | 5 to 9 | 120 | QFN, 16-pin | 3.0 x 3.0 x 0.63 |
RFPA2189 | 400 | 2,700 | 14.5 | 27 | 42.5 | 2.8 | 5 | 155 | SOT-89 | 4.5 x 2.5 x 1.5 |
RFPA3800 | 150 | 960 | 15 | 36 | 49 | 3.2 | 7 | 650 | SOIC-8 | 5.0 x 4.0 x 1.47 |
SXA389Z | 400 | 2,500 | 14 | 25 | 43 | 4.7 | 5 | 115 | SOT-89 | 4.5 x 2.45 |
SZA-3044Z | 2,700 | 3,800 | 24 | 31.5 |
| 5 | 5 | 205 | QFN | 4 x 4 |
SZM-3066Z | 3,300 | 3,800 | 34 | 33.5 |
| 5 | 5 | 600 | QFN | 6 x 6 |
TGA2509 | 2,000 | 22,000 | 17 |
|
|
| 12 | 1,100 | Die | 2.3 x 3.2 x 0.1 |
TGA2597 | 2,000 | 6,000 | > 24 |
| > 31.5 |
| 25 | 40 | Die | 2.14 x 1.5 x 0.1 |
TGA2597-SM | 2,000 | 6,000 | > 24 |
| > 32 |
| 25 | 40 | QFN | 4.0 x 4.0 x 0.85 |
TGA2598 | 6,000 | 12,000 | > 21 | > 33 |
|
| 25 | 100 | Die | 2.14 x 1.11 x 0.1 |
TGA2598-SM | 6,000 | 12,000 | 25 |
|
|
| 25 | 100 | QFN | 4.0 x 4.0 x 1.5 |
TGA2599-SM | 5,000 | 8,000 | > 23 |
|
|
| 25 | 50 | QFN | 4.0 x 4.0 x 0.85 |
TGA2731-SM | 2,700 | 4,000 | > 24 |
| > 30.7 |
| 6 | 900 | QFN | 5.0 x 5.0 x 0.85 |
TGA2958 | 13,000 | 18,000 | > 25 |
| -27 |
| 20 | 70 | Die | 2.14 x 1.25 x 0.1 |
TGA2958-SM | 13,000 | 18,000 | > 25 |
| -27 |
| 20 | 70 | QFN | 4.0 x 4.0 x 1.74 |
TQP7M9101 | 400 | 4,000 | 17.5 | 24.8 | 40 | 4 | 5 | 88 | SOT-89 | 4.5 x 4.1 x 1.5 |
TQP7M9102 | 400 | 4,000 | 17.8 | 27.5 | 44 | 3.9 | 5 | 137 | SOT-89 | 4.5 x 4.1 x 1.5 |
TQP7M9103 | 400 | 4,000 | 16.6 | 29.1 | 45 | 4.4 | 5 | 235 | SOT-89 | 4.5 x 4.1 x 1.5 |
TQP7M9104 | 600 | 2,700 | 15.8 | 32.8 | 49.5 | 4.4 | 5 | 435 |
|
|
TQP7M9105 | 50 | 1,500 | 19.4 | 30 | 49 | 6.3 | 5 | 220 | SOT-89 | 4.5 x 4.1 x 1.5 |
TQP7M9106 | 50 | 1,500 | 20.8 | 33 | 50 | 4.8 | 5 | 455 |
|
|
TQP9107 | 600 | 960 | 35.5 | 31.4 | 46 | 5 | 4.3 | 370 | DFN, 14-pin | 3.5 x 4.5 x 0.9 |
TQP9108 | 1,710 | 2,170 | 30.5 | 31.3 | 46 | 5 | 4.3 | 300 | DFN, 14-pin | 3.5 x 4.5 x 0.9 |
TQP9109 | 1,800 | 2,700 | 30.5 | 27.5 | 46 | 3.5 | 5 | 225 | QFN, 20-pin | 4.0 x 4.0 x 1.02 |
TQP9111 | 1,800 | 2,700 | 29.8 | 32.5 | 46 | 6.2 | 5 | 545 | QFN, 20-pin | 4.0 x 4.0 x 1.02 |
TQP9113 | 1,800 | 2,700 | 27.2 | 30.4 | 42 | 4.7 | 5 | 216 | QFN, 20-pin | 4.0 x 4.0 x 0.85 |
